Description

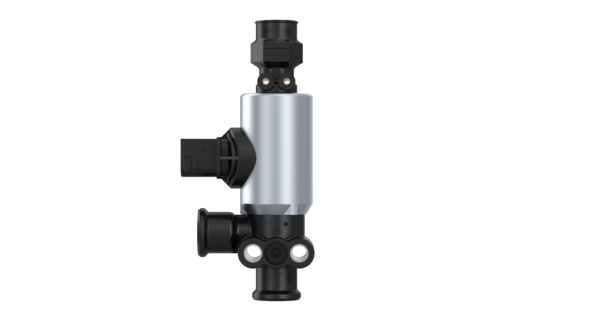

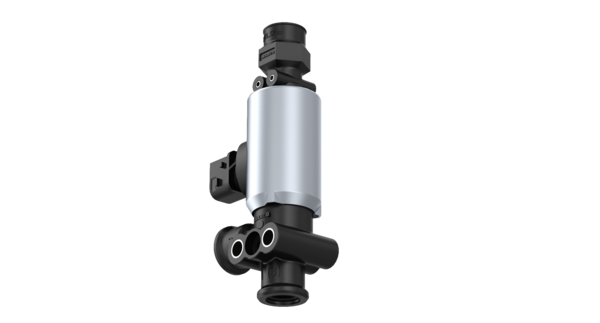

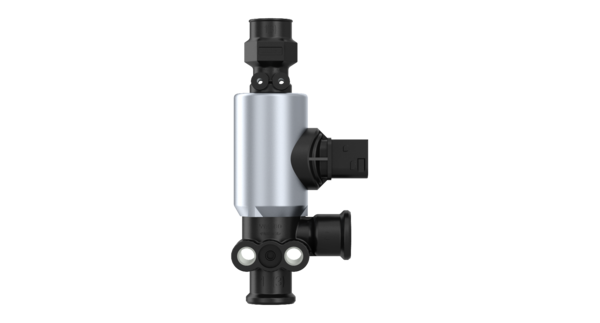

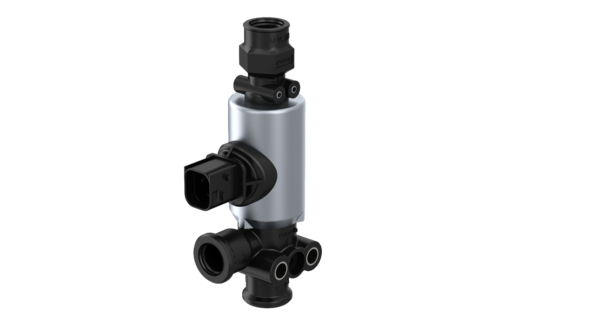

Solenoid Valve
Part Number: 4721700800
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.403 |
| Cooling | Compressed air |
| Electrical connection | Tyco HDSCS Cod. A C-114-18739-1 (INDEX C) |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | V16 x 1.5 JED 388 |
| Port thread 2 | V16 x 1.5 JED – 388 |
| Port thread 3 | V16 x 1.5 JED 388 |
| Product category | Device |
| Protection class | IP 6K8, IP 6K9K |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875218012 |
| Size (mm x mm x mm) | 148 x 68 x 40 |
| UPC | 193133310938 |
| Weight (kg) | 0.449 |
| Weight (lb) | 0.98987 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0009973612 |
| MERCEDES-BENZ | A0009973612 |
| MERCEDES-BENZ | 0009973612 |
