Description

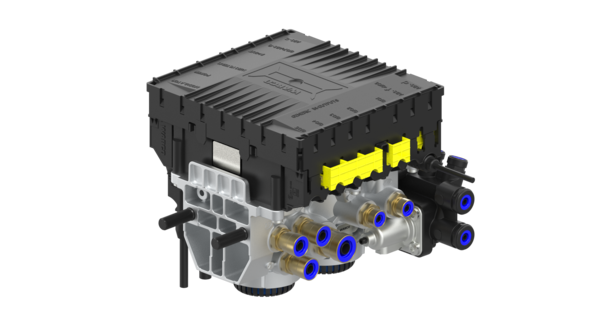

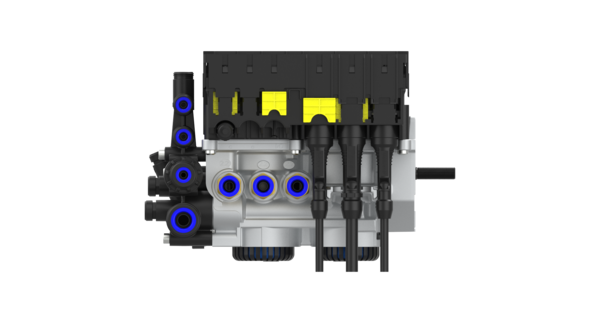

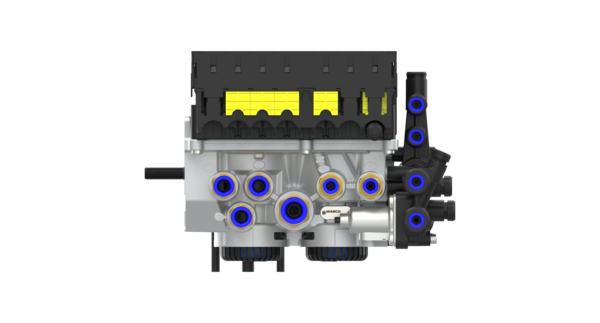

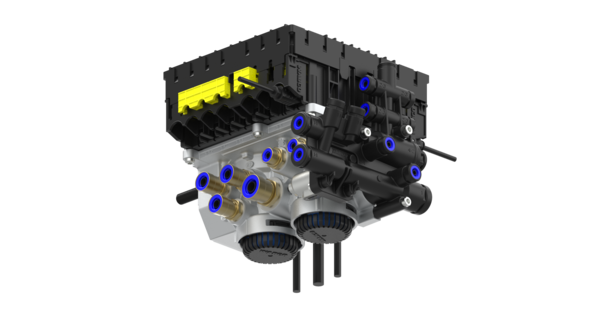

EBS-Trailer Modulator 24V
Part Number: 4801020310
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 12.555 |
| Distance between bolts | 70 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x M12 |
| Port thread 1 | 16 x 2 / 8 x 1 |
| Port thread 11 | 8 x 1 |
| Port thread 21 | 12 x 1.5 |
| Port thread 22 | 12 x 1.5 |
| Port thread 23 | 8 x 1 |
| Port thread 24 | 8 x 1 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | 8 x 1 |
| Port thread 42 | 8 x 1 |
| Port thread 5 | 8 x 1 |
| Product category | Device |
| Protection class | IP 6K9K |
| System | 2S/2M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Standard |
| Version | TEBS E with PEM |
| Voltage | 24 V |
| GTIN | 04057875228707 |
| Size (mm x mm x mm) | 224 x 258 x 198 |
| UPC | 193133317135 |
| Weight (kg) | 5.6 |
| Weight (lb) | 12.35 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KÖGEL | 6502240 |
| KÖGEL | 65022400 |
| SCANIA | 2090386 |
| VOLVO | WA4801020310 |
