Description

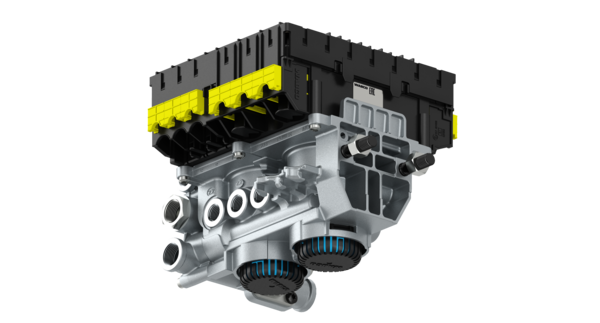

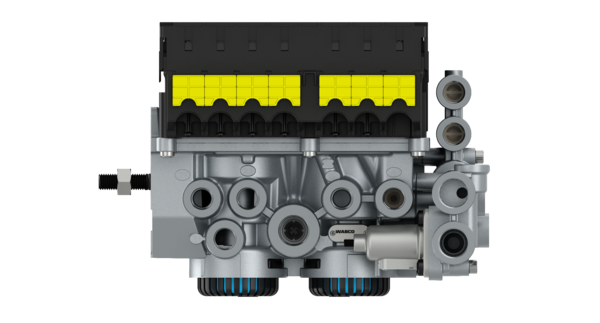

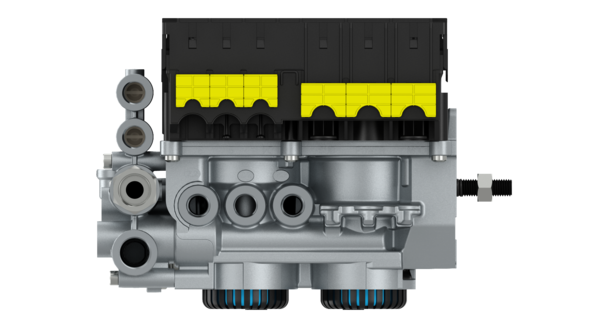

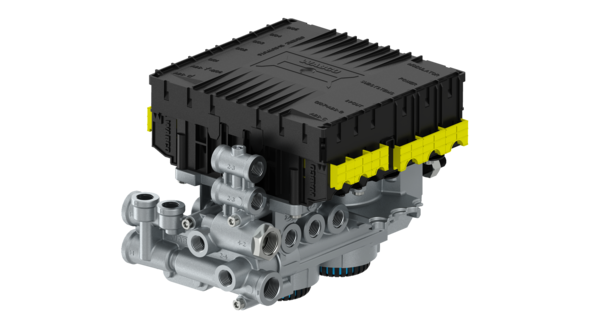

EBS Trailer Modulator Multivoltage
Part Number: 4801020840
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 11.2068 |
| Distance between bolts | 70 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x M12 |
| Port thread 1 | M22 x 1.5 JED-152 / M16 x 1.5 JED-152 |
| Port thread 11 | M22 x 1.5 JED – 152 / M16 x 1.5 JED – 152 |
| Port thread 21 | M16 x 1.5 JED – 152 |
| Port thread 22 | M16 x 1.5 JED – 152 |
| Port thread 23 | M16 x 1.5 JED – 152 |
| Port thread 24 | M16 x 1.5 JED – 152 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 152 |
| Port thread 42 | M16 x 1.5 JED-152 |
| Port thread 5 | M16 x 1.5 JED-152 |
| Product category | Device |
| Protection class | IP 6K9K |
| System | 4S/3M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Multi-Voltage |
| Version | TEBS E with PEM |
| Voltage | 12/24 V |
| GTIN | 04057875228868 |
| Size (mm x mm x mm) | 224 x 243 x 198 |
| UPC | 193133317326 |
| Weight (kg) | 5.4 |
| Weight (lb) | 11.905 |
