Description

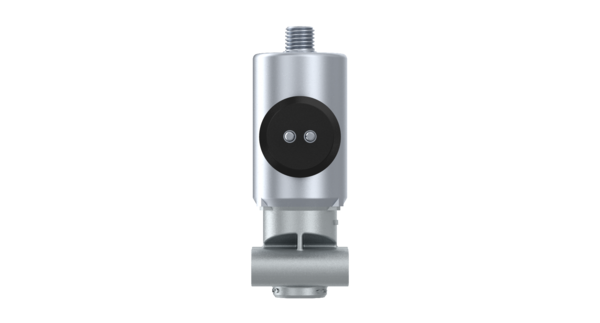

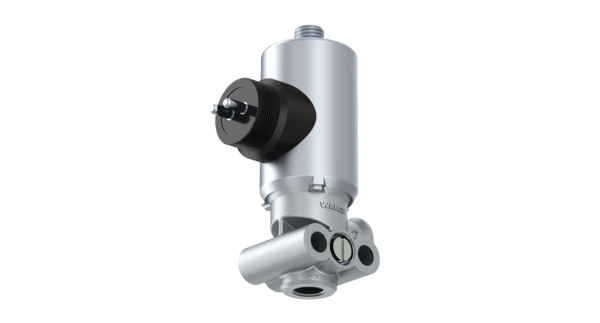

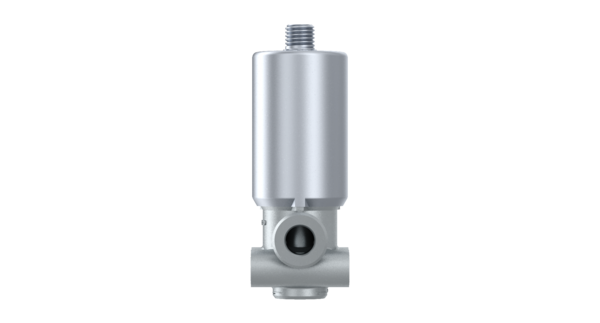

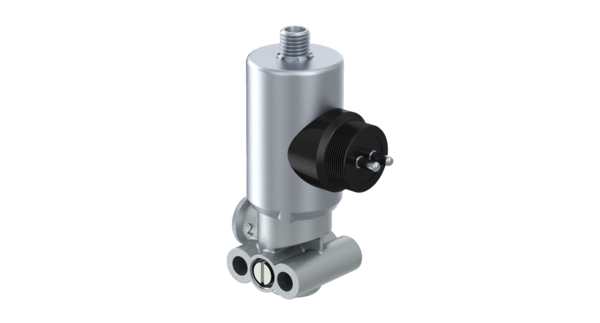

Solenoid Valve
Part Number: 4721717000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.28272 |
| Electrical connection | M27 x 1 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218289 |
| Size (mm x mm x mm) | 114 x 62 x 40 |
| UPC | 193133443186 |
| Weight (kg) | 0.541 |
| Weight (lb) | 1.1927 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506157 |
| DAF | 0644431 |
| EVOBUS | A0049978936 |
| FELDBINDER | 053669 |
| FRUEHAUF | MO58830 |
| FRUEHAUF | M058830 |
| IVECO | 41016827 |
| KENWORTH | S4721717000 |
| MAN | 99114710043 |
| MERCEDES-BENZ | 0049978936 |
| MERCEDES-BENZ | A0049978936 |
| MERITOR | S4721717000 |
| NEOPLAN | 11017383 |
| NOOTEBOOM | 1250689 |
| NOOTEBOOM | 1159110 |
| PETERBILT | S4721717000 |
| SCANIA | 1934960 |
| SCHMITZ CARGOBULL | 050804 |
| SCHMITZ CARGOBULL | 50804 |
| SCHMITZ CARGOBULL | INS0120012 |
| VAN HOOL | 10532891 |
