Description

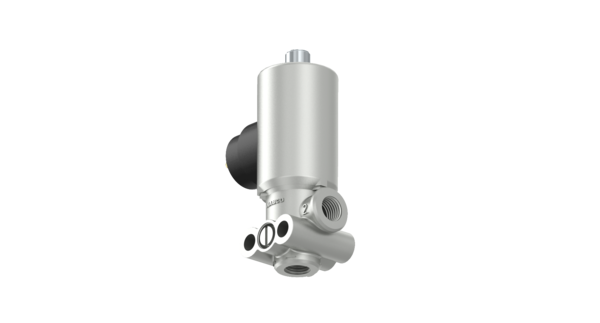

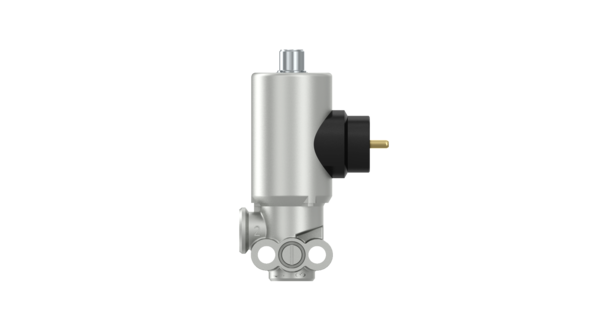

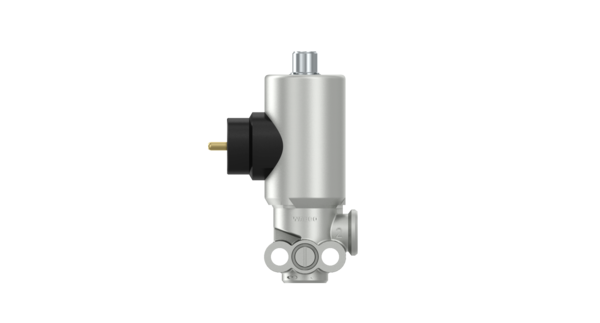

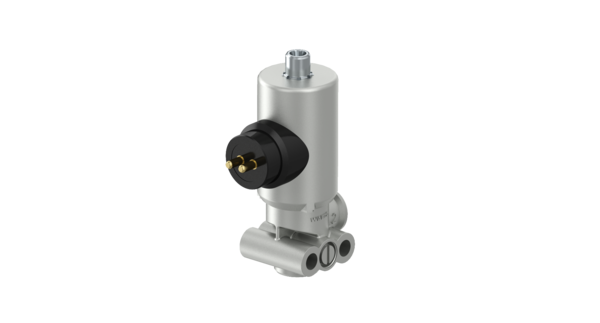

Solenoid Valve
Part Number: 4721707000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.271 |
| Electrical connection | M27 x 1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875218104 |
| Size (mm x mm x mm) | 61 x 111 x 40 |
| UPC | 193133443056 |
| Weight (kg) | 0.538 |
| Weight (lb) | 1.1861 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0049979236 |
| FREIGHTLINER | TDAS4721707000 |
| IVECO | 42546417 |
| IVECO | 4833404 |
| KENWORTH | S4721707000 |
| MERCEDES-BENZ | 0049979236 |
| MERCEDES-BENZ | A0049979236 |
| MERITOR | S4721707000 |
| PETERBILT | S4721707000 |
| SCANIA | 2089742 |
| VAN HOOL | 10558451 |
| VDL | 20276563 |
