Description

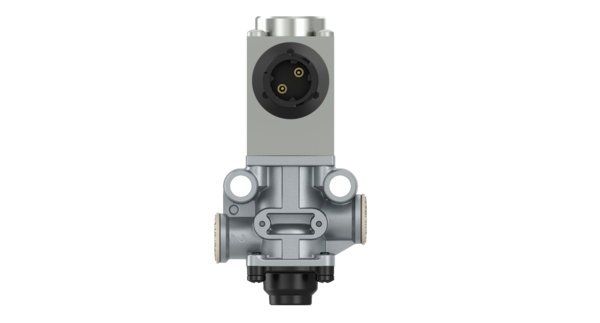

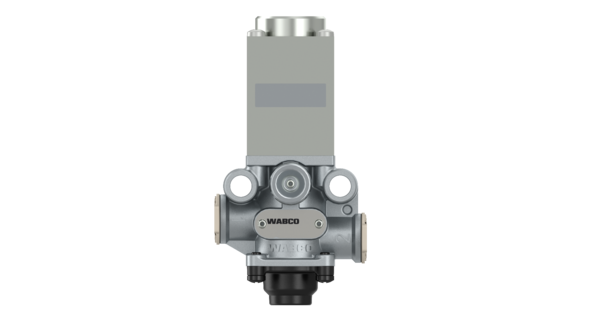

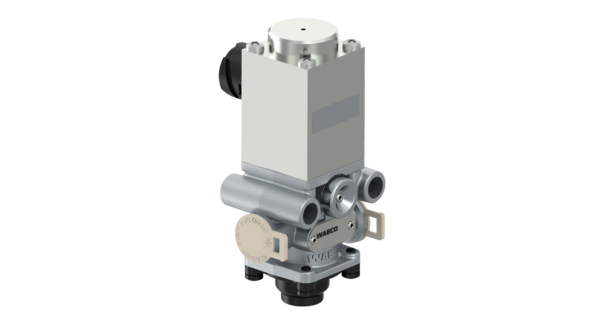

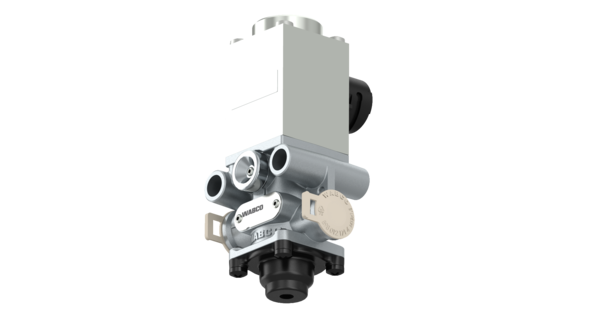

Proportional valve
Part Number: 4722500080
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.4875 |
| Distance between holes | 42 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 9.0 mm |
| Multi nominal diameter (from port 1 to x) | 4.0 / 2.5 mm |
| Port thread 1 | RC 1/4″ |
| Port thread 2 | RC 1/4″ |
| Product category | Device |
| Rated current | 570 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Proportional valve |
| Voltage | 24 V |
| GTIN | 04057875219446 |
| Size (mm x mm x mm) | 125 x 65 x 60 |
| UPC | 193133406747 |
| Weight (kg) | 0.635 |
| Weight (lb) | 1.3999 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ISUZU | 8982288491 |
