Description

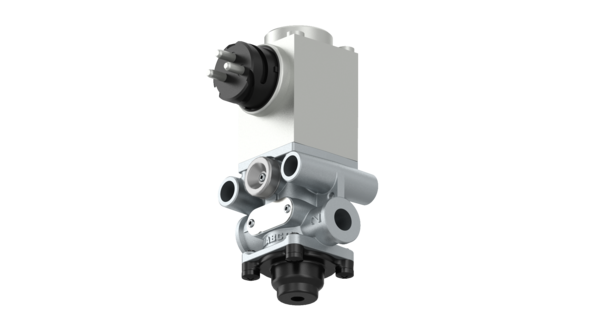

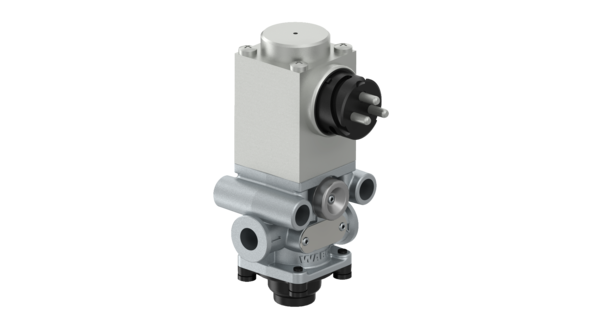

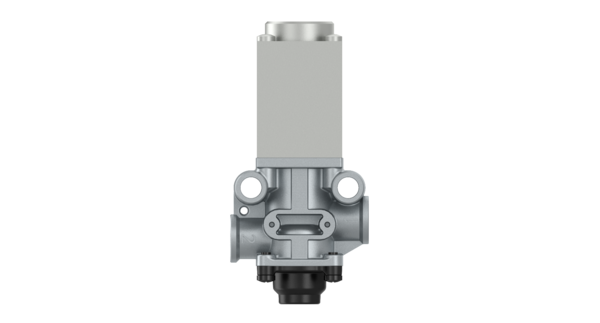

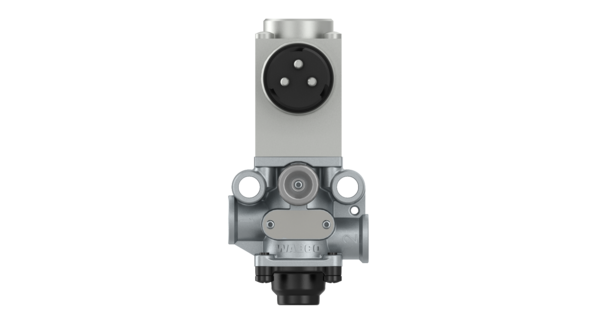

Proportional valve
Part Number: 4722500030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.51857 |
| Distance between holes | 42 mm |
| Electrical connection | Bayonet |
| Max. operating pressure | 11.2 bar |
| Mounting | 2x Ø 9.0 mm |
| Multi nominal diameter (from port 1 to x) | 4.0 / 2.5 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Rated current | 570 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Proportional valve |
| Voltage | 24 V |
| GTIN | 04057875219484 |
| Size (mm x mm x mm) | 123 x 62 x 68 |
| UPC | 193133312123 |
| Weight (kg) | 0.666 |
| Weight (lb) | 1.4683 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 865178 |
| DAF | 1525456 |
| IRISBUS | 98417040 |
| IVECO | 98417040 |
| IVECO | 4722500030 |
| IVECO | 116883 |
| IVECO | 9841585 |
| PACCAR | 1518301 |
| SCANIA | 1934981 |
| VDL | 41188839 |
| VDL | 1188839 |
