Description

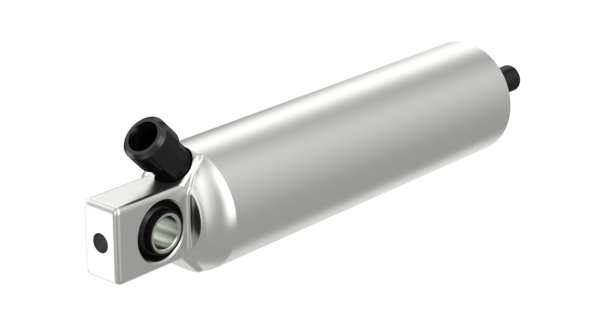

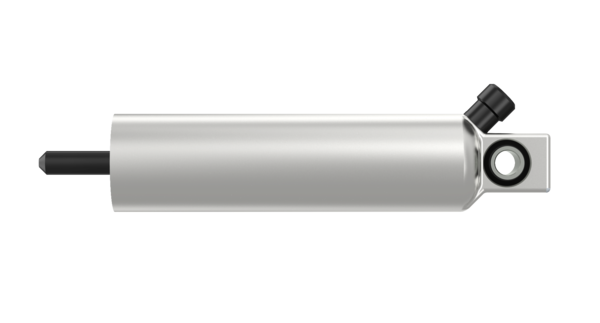

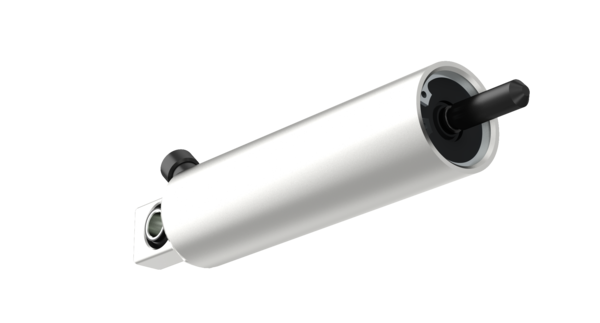

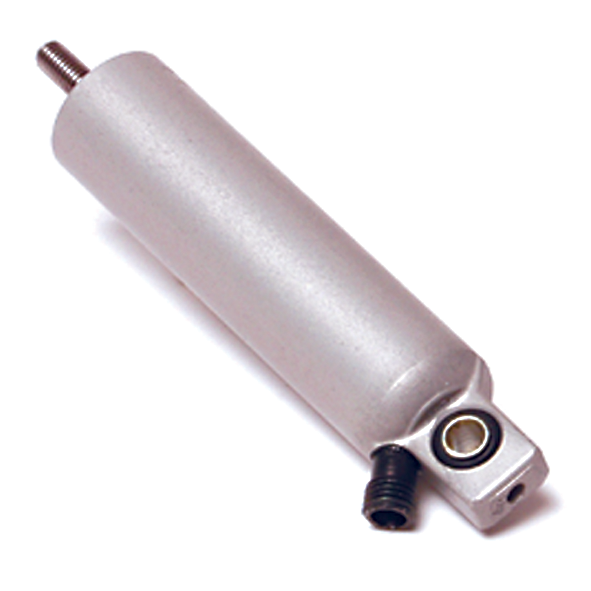

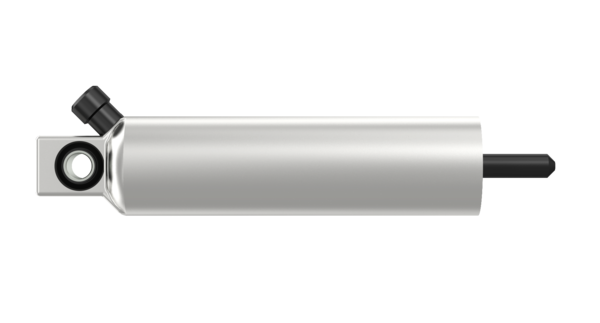

Operating Cylinder
Part Number: 4214290030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.20365 |
| Diameter | 33.0 mm |
| Inlet port | M12x1.5 |
| Length | 171 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | Ø 8.2 mm |
| Piston diameter | 28.0 mm |
| Piston force | 320 N |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 250 N |
| Stroke | 48.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to +140°C |
| Total length | 171.4 mm |
| Type | Single-acting Cylinder |
| GTIN | 7895851002111 |
| Size (mm x mm x mm) | 172 x 37 x 32 |
| UPC | 193133242659 |
| Weight (kg) | 0.225 |
| Weight (lb) | 0.49604 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6541331 |
| DAF | 1505023 |
| EVOBUS | 8285311000 |
| IVECO | 3260555R1 |
| MAN | 81157016003 |
| MAN | 81517016003 |
| MAN | 88157016003 |
| MERCEDES-BENZ | 0004301826 |
| MERCEDES-BENZ | 0004301926 |
| MERCEDES-BENZ | 0004302626 |
| MERCEDES-BENZ | 0004303026 |
| MERCEDES-BENZ | 0004304826 |
| MERCEDES-BENZ | A0004304926 |
| MERCEDES-BENZ | 0004304926 |
| NEOPLAN | 110270600 |
| NEOPLAN | 11017417 |
| NEOPLAN | 88157016003 |
| PACCAR | 1505023 |
| STEYR | 565031190010 |
| TEREX | 42068512 |
