Description

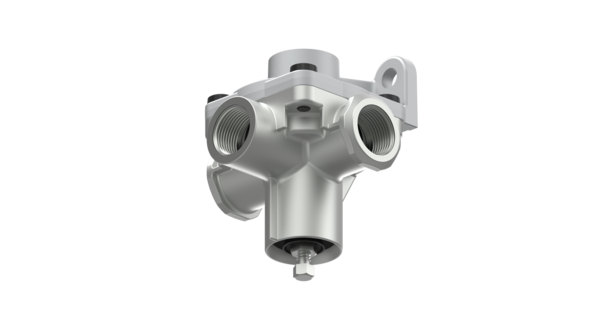

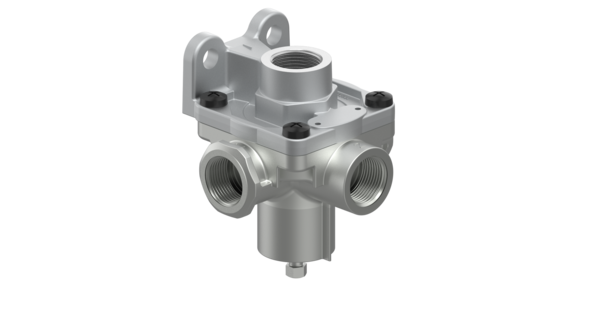

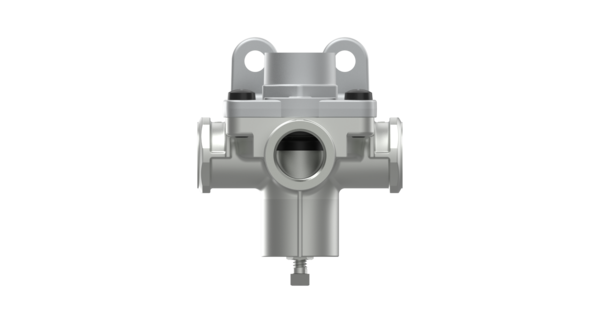

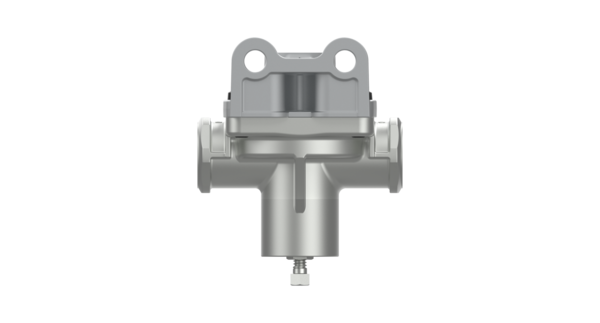

Adjusting Valve
Part Number: 9750010020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 2.3 bar |
| Calculated Volume (dm³) | 0.888894 |
| Distance between bolts | 38 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9.5 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 3x M22 x 1.5 (1x closed) |
| Port thread 2.1 | M22 x 1.5 |
| Port thread 2.2 | M22x1.5 |
| Product category | Device |
| Range of adjustment | 0.3 to 1.6 bar |
| Regulating ratio | 1:1 (after break point) |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Wrench size | 32.0 mm |
| GTIN | 04057875305002 |
| Size (mm x mm x mm) | 118 x 93 x 81 |
| UPC | 193133450450 |
| Weight (kg) | 0.61 |
| Weight (lb) | 1.3448 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB9750010027 |
| BEDFORD | A4028531 |
| BENALU | M05996901 |
| DAF | 1518277 |
| FAUN | 99707005569 |
| FREIGHTLINER | TDAS9750010020 |
| FRUEHAUF | D13263 |
| FRUEHAUF | M059969 |
| IRISBUS | 500366087 |
| IVECO | 04671316 |
| IVECO | 02524783 |
| IVECO | 500366087 |
| KENWORTH | S9750010020 |
| KÖGEL | 308712 |
| LEYLAND DAF | 817807 |
| MACK | 8235-S9750010020 |
| MAN | 81521206041 |
| MAN | 81521806211 |
| MAN | 88521806211 |
| MAN | 90810114156 |
| MAN | 9750010020 |
| MAN | 2114678 |
| MERITOR | S9750010020 |
| NEOPLAN | 88521806211 |
| NIPPON TREX | 912032-00015 |
| PACCAR | 1518277 |
| PETERBILT | S9750010020 |
| RENAULT | 5000546879 |
| RENAULT | 20932410 |
| RENAULT | 2114678 |
| SCANIA | 2090403 |
| VOLVO | 20932410 |
| VOLVO | 2114678 |
| VOLVO | 5000546879 |
| VOLVO | S9750010020 |
| YUTONG | 351200011 |
| ZORZI | 1013083 |
