Description

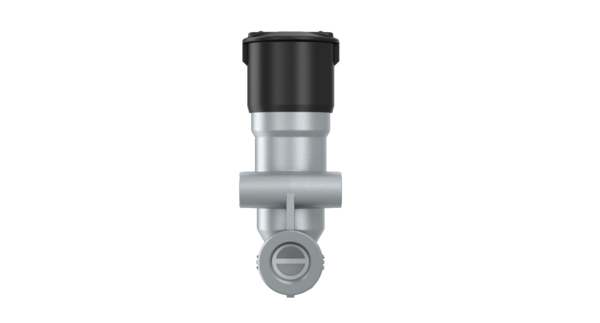

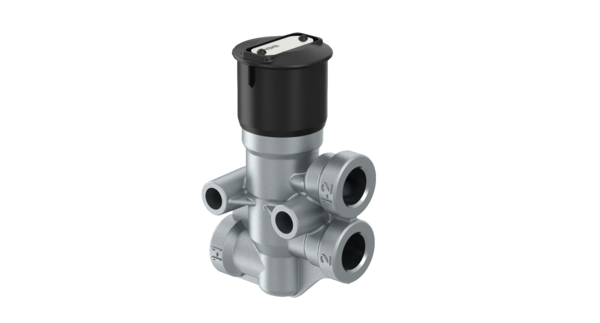

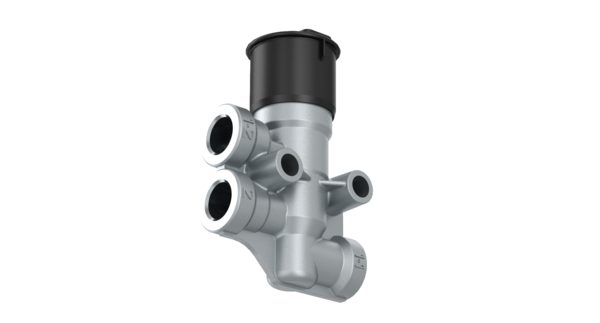

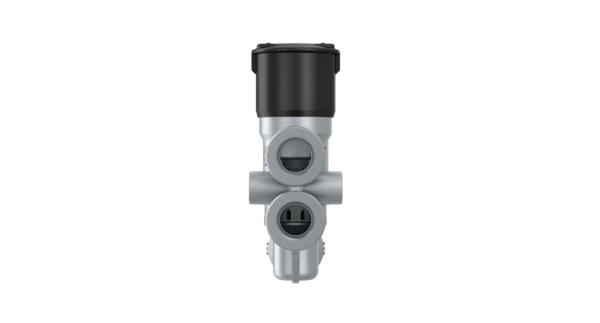

Trailer Release Valve
Part Number: PRO5270040
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation | Yellow |
| Calculated Volume (dm³) | 0.756 |
| Distance between holes | 44 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | Mounting holes |
| Port thread 1-2 | Ø 7.0 mm |
| Port thread 2 | Ø 21.5 mm |
| Port thread 3 | M16 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Supply port | M16×1.5 |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | Release valve |
| Variant | Double |
| GTIN | 04057877004941 |
| Size (mm x mm x mm) | 120 x 70 x 90 |
| UPC | 193134004867 |
| Weight (kg) | 0.183 |
| Weight (lb) | 0.4034 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | 605323000 |
| DAF | 1325331 |
| ERF | 1065271 |
| FAYMONVILLE | 1020 |
| FAYMONVILLE | 01020 |
| FELDBINDER | 006712 |
| FRUEHAUF | A-FA4271-008 |
| FRUEHAUF | AFA4271008 |
| FRUEHAUF | ASX0694001AFA0775 |
| FRUEHAUF | CF351221AJA09501 |
| FRUEHAUF | M059411 |
| GOLDHOFER | 152092 |
| HENDRICKSON | 963/006/001/0 |
| HENDRICKSON | 9630060010 |
| IVECO | 08193547 |
| IVECO | 8193547 |
| KEMPF | 2102005 |
| KRONE | 500945021 |
| LANGENDORF | 1133255 |
| LECITRAILER | 4110241 |
| LEYLAND DAF | FBU3268 |
| LOHR | A05020211 |
| MAN | 1065271 |
| NEOPLAN | 7128000 |
| NEOPLAN | 07128000 |
| NOOTEBOOM | 308063 |
| NOOTEBOOM | 08054 |
| ORTHAUS | 49501101000 |
| OTOKAR | A-IF0772 |
| OTOKAR | AIF0772 |
| RENAULT | 5021170428 |
| SCANIA | 2090268 |
| SCHMITZ CARGOBULL | 053010 |
| SCHWARZMÜLLER | 9141 |
| TEREX | 32413640 |
| ZORZI | 1013065 |
