Description

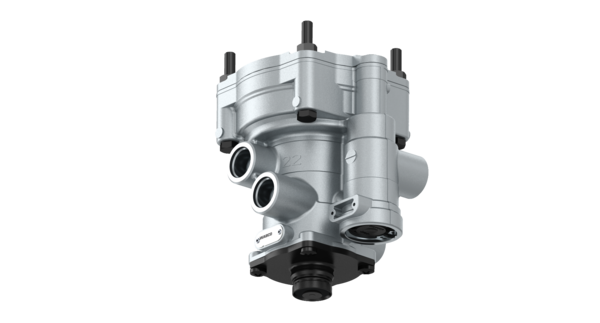

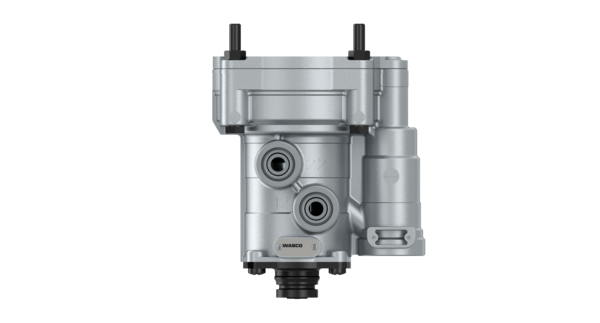

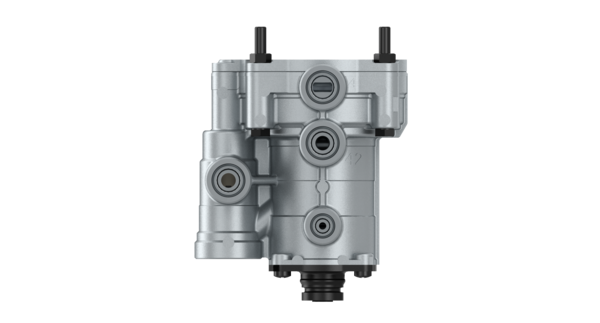

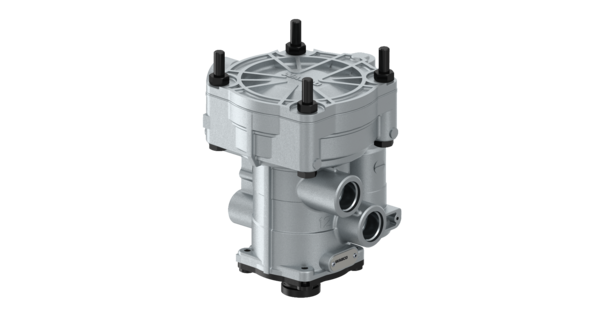

Trailer Control Valve
Part Number: 9730090040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.4403 |
| Distance between bolts | 85×85 mm |
| Exhaust | Snap-on contour |
| Max. operating pressure | 8.5 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 9 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 12 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 41 | M22 x 1.5 JED-388 |
| Port thread 42 | M22 x 1.5 JED-388 |
| Port thread 43 | M16 x 1.5 JED-388 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875303534 |
| Size (mm x mm x mm) | 172 x 146 x 137 |
| UPC | 193133377375 |
| Weight (kg) | 2.094 |
| Weight (lb) | 4.6165 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0034319605 |
| MERCEDES-BENZ | 0034319605 |
| MERCEDES-BENZ | A0034319605 |
| NISSAN | 45289D9300 |
| UD TRUCKS | 45289D9300 |
