Description

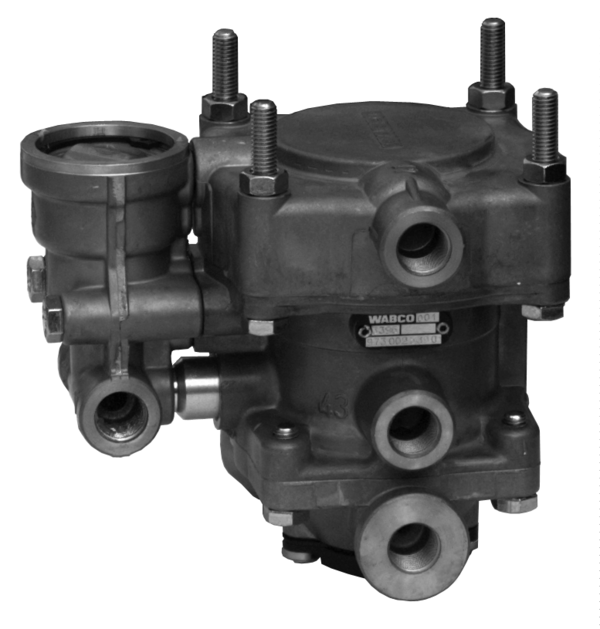

Trailer Control Valve
Part Number: 9730025390
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.6132 |
| Distance between bolts | 85×85 mm |
| Exhaust | Flap |
| Max. operating pressure | 8.0 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 8.0 / 2.0 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Predominance | 0.30 bar |
| Product category | Device |
| Switch pressure | 2.5 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875303343 |
| Size (mm x mm x mm) | 164 x 136 x 162 |
| UPC | 193133450092 |
| Weight (kg) | 2.23 |
| Weight (lb) | 4.9163 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518266 |
| EVOBUS | A0014318705 |
| IVECO | 04773981 |
| IVECO | 04773986 |
| IVECO | 42033548 |
| IVECO | 42051712 |
| IVECO | 42051714 |
| IVECO | 42065521 |
| IVECO | 42065522 |
| IVECO | 42100481 |
| KENWORTH | S9730025390 |
| KÖGEL | 322799 |
| LIEBHERR | 502658208 |
| MACK | 6300-9730025390 |
| MAFI | 0005661003 |
| MAN | 81523016118 |
| MAN | 81523016120 |
| MAN | 81523016154 |
| MAN | 81523016165 |
| MAN | 81523016173 |
| MERCEDES-BENZ | 0014318705 |
| MERCEDES-BENZ | 0024310105 |
| MERCEDES-BENZ | 0034310205 |
| MERCEDES-BENZ | A0014318705 |
| MERITOR | S9730025390 |
| PETERBILT | S9730025390 |
| STEYR | 99100360007 |
| VOLVO | WAB9730025390 |
