Description

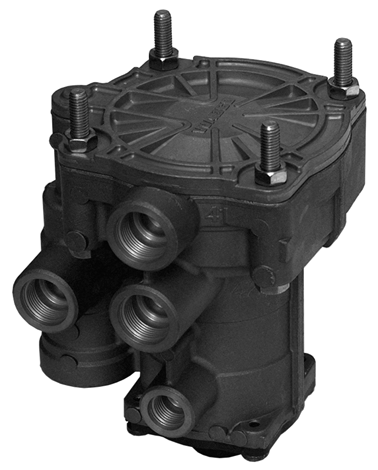

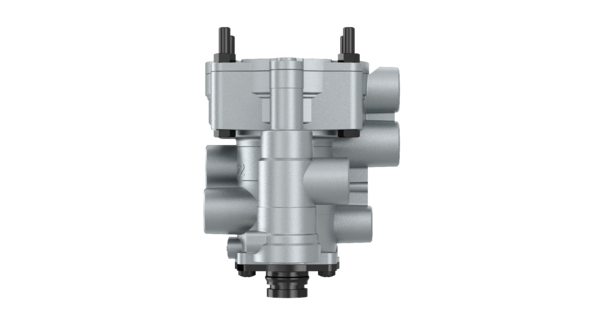

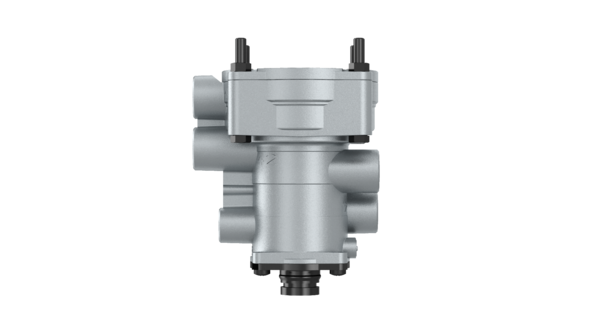

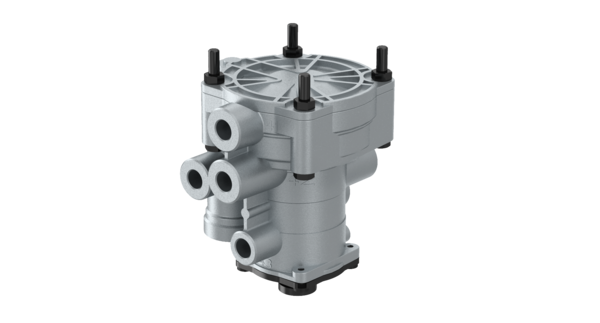

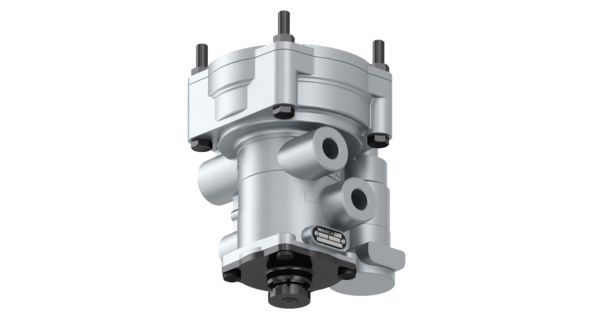

Trailer Control Valve
Part Number: 9730090010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.8631 |
| Distance between bolts | 85×85 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 8.5 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 9 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 12 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 41 | M22 x 1.5 JED-388 |
| Port thread 42 | M22 x 1.5 JED-388 |
| Port thread 43 | M16 x 1.5 JED-388 |
| Predominance | 0.20 bar |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851023543 |
| Size (mm x mm x mm) | 193 x 144 x 139 |
| UPC | 193133377337 |
| Weight (kg) | 2.098 |
| Weight (lb) | 4.6253 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 445332050 |
| DAF | 1506483 |
| EVOBUS | A0034318205 |
| FAW | 352201552A |
| FAW | 3522015-52A |
| KOMATSU | 55116140 |
| KÖGEL | 332607 |
| MAN | 81523016183 |
| MAN | 81523016184 |
| MAN | 81523016186 |
| MERCEDES-BENZ | 0034311305 |
| MERCEDES-BENZ | 0034311405 |
| MERCEDES-BENZ | 0034313405 |
| MERCEDES-BENZ | 0034313505 |
| MERCEDES-BENZ | 0034318205 |
| MERCEDES-BENZ | A0034318205 |
| NEOPLAN | 81523016184 |
| RENAULT | 5010376021 |
| SINOTRUK (CNHTC) | WG9000360525/1 |
| SINOTRUK (CNHTC) | WG9000360525/2 |
| TEREX | 55116140 |
