Description

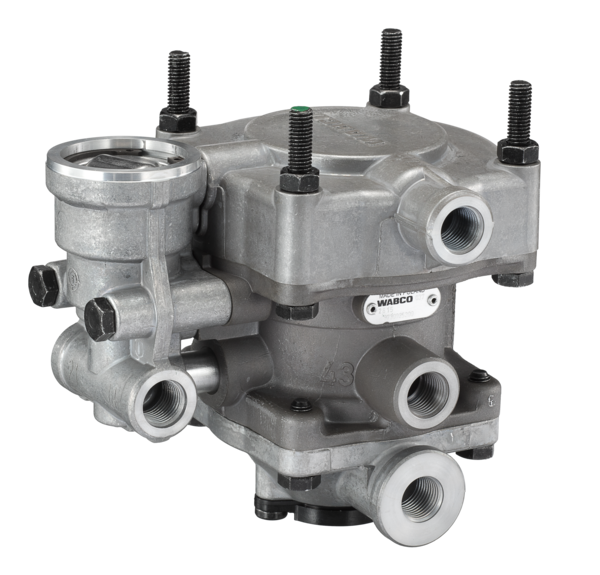

Trailer Control Valve
Part Number: 9730025200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.55 |
| Distance between bolts | 85×85 mm |
| Exhaust | Flap |
| Max. operating pressure | 8.0 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 8.0 / 2.0 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Product category | Device |
| Switch pressure | 2.5 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851044180 |
| Size (mm x mm x mm) | 158 x 164 x 137 |
| UPC | 193133450061 |
| Weight (kg) | 1.94 |
| Weight (lb) | 4.277 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BEDFORD | A4024203 |
| DAF | 1518263 |
| FAUN | 99708458683 |
| FAUN | 8458683 |
| FUSO (MITSUBISHI) | MC815835 |
| HINO | 446100011A |
| IVECO | 42000822 |
| IVECO | 42001971 |
| KENWORTH | S973-002-520-0 |
| KOMATSU | 41558540 |
| MERCEDES-BENZ | 0014316705 |
| MERCEDES-BENZ | 0014316905 |
| MERCEDES-BENZ | 0014317405 |
| MERCEDES-BENZ | 0024314005 |
| MERCEDES-BENZ | 0024314805 |
| MERCEDES-BENZ | A0024314805 |
| MERITOR | S9730025200 |
| PETERBILT | S973-002-520-0 |
| RENAULT | 5430037990 |
| SAF | 05400011500 |
| STEYR | 99100360069 |
| STEYR | 79200360154 |
| TEREX | 32409440 |
