Description

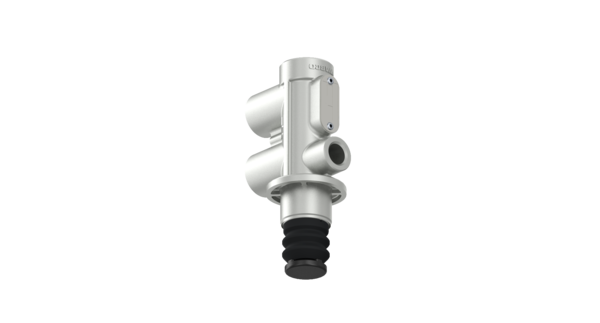

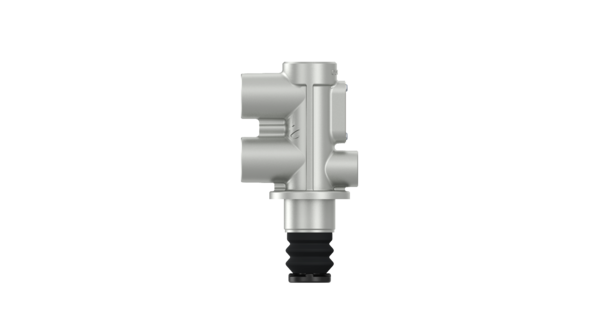

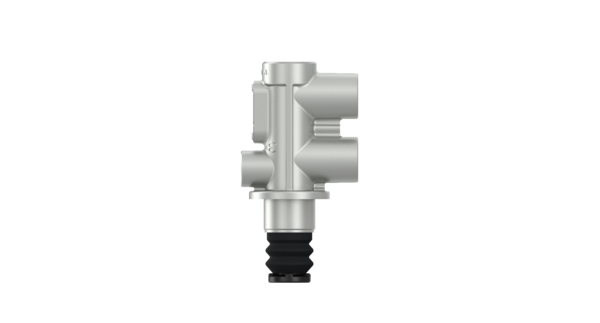

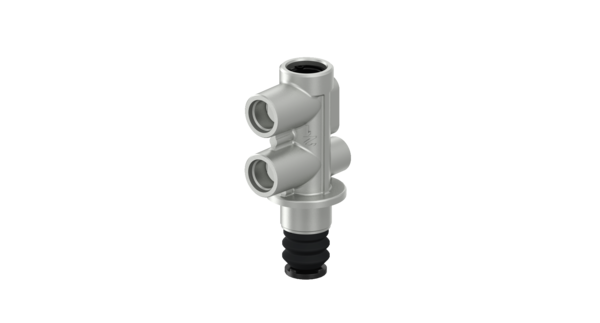

Three Way Valve
Part Number: 4630132000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuating range | 2.5 mm |
| Actuation | Push |
| Calculated Volume (dm³) | 0.231 |
| Comments | No locking function |
| Exhaust | M12 x 1.5 |
| Handle length | 65 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M16 x 1.5 JED-388 |
| Port thread 2 | M16 x 1.5 JED – 388 |
| Port thread 3 | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875212447 |
| Size (mm x mm x mm) | 110 x 60 x 35 |
| UPC | 193133306047 |
| Weight (kg) | 0.293 |
| Weight (lb) | 0.64595 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505077 |
| EVOBUS | A0004343801 |
| MERCEDES-BENZ | 0004343801 |
| MERCEDES-BENZ | A0004343801 |
| PACCAR | 1505077 |
| SCANIA | 1934909 |
