Description

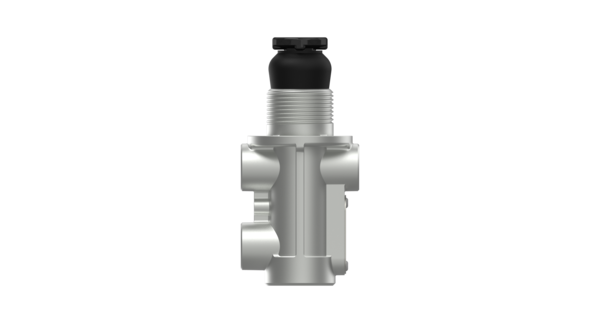

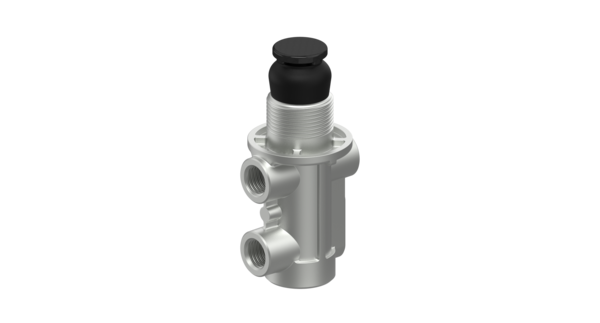

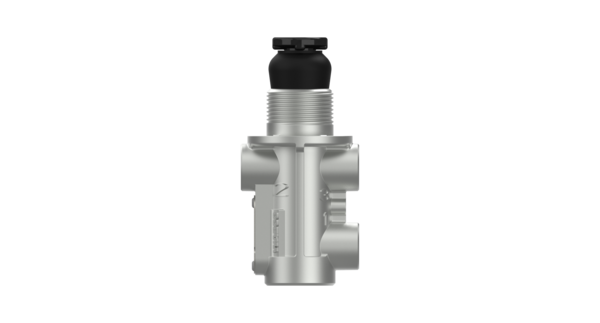

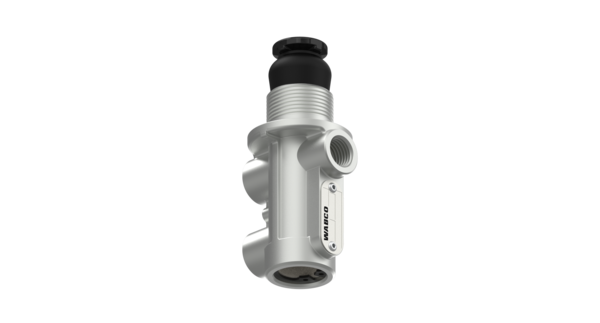

Three Way Valve
Part Number: 4630131120
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Push |
| Calculated Volume (dm³) | 0.14805 |
| Comments | No locking function |
| Exhaust | M12 x 1.5 |
| Handle length | 37.9 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 JED-152 |
| Port thread 2 | M12 x 1.5 JED – 152 |
| Port thread 3 | M12 x 1.5 JED-152 |
| Product category | Device |
| Stroke | 5.7 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875212317 |
| Size (mm x mm x mm) | 94 x 45 x 35 |
| UPC | 193133442387 |
| Weight (kg) | 0.196 |
| Weight (lb) | 0.43211 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505074 |
| ERF | 4086378 |
| EVOBUS | A0004342301 |
| FELDBINDER | 010860 |
| FORD | LCT2K169AA |
| FREIGHTLINER | TDAS4630131120 |
| IVECO | 02564591 |
| IVECO | 03421094 |
| IVECO | 42020976 |
| IVECO | 42021846 |
| KENWORTH | S4630131120 |
| KRONE | 5810843 |
| KRONE | 58108431 |
| KRONE | 505810843 |
| MACK | 6300-4630131120 |
| MAN | 81521856009 |
| MAN | 4086378 |
| MERCEDES-BENZ | 0004341001 |
| MERCEDES-BENZ | 0004342101 |
| MERCEDES-BENZ | 0004342301 |
| MERCEDES-BENZ | 0004342901 |
| MERCEDES-BENZ | A0004342301 |
| MERCEDES-BENZ | A0004342101 |
| MERITOR | S4630131120 |
| NEOPLAN | 110246300 |
| NEOPLAN | 1102463544402 |
| PACCAR | 1505074 |
| PETERBILT | S4630131120 |
| RENAULT | 5021170180 |
| SCANIA | 1934903 |
| TIRSAN | 21151105121 |
| VOLVO | 6645266 |
| VOLVO | 6645268 |
| VOLVO | WAB4630131120 |
