Description

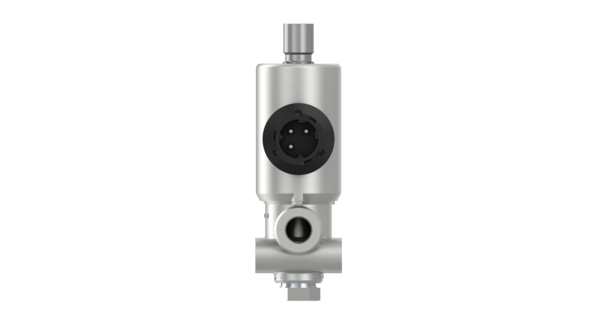

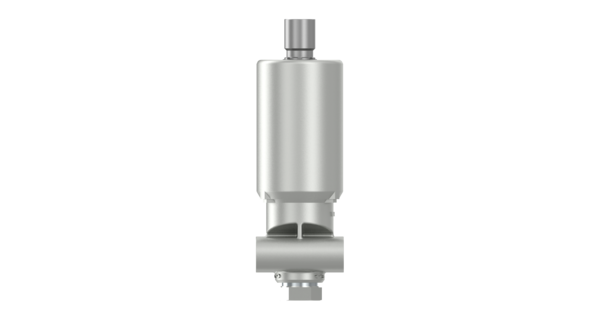

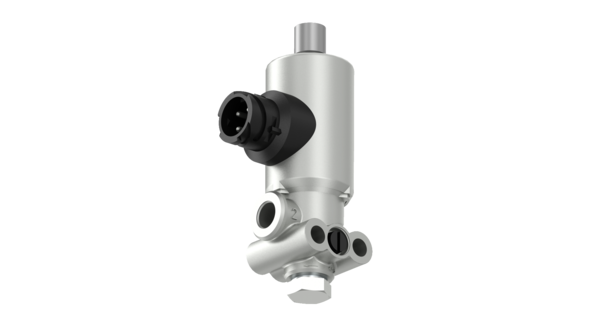

Solenoid Valve
Part Number: 4721754260
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.30221 |
| Cooling | Air |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K1 |
| Max. operating pressure | 16.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218616 |
| Size (mm x mm x mm) | 39 x 123 x 63 |
| UPC | 193133311492 |
| Weight (kg) | 0.559 |
| Weight (lb) | 1.2324 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1315513 |
| DOLL | 7087041 |
| FELDBINDER | 1016661 |
| FRUEHAUF | GB52000290 |
| HAMANA | GB52000290 |
| KRONE | 515010026 |
| LANGENDORF | 1240979 |
| LIEBHERR | 10167542 |
| SCANIA | 2089750 |
| SCHWARZMÜLLER | 62297 |
