Description

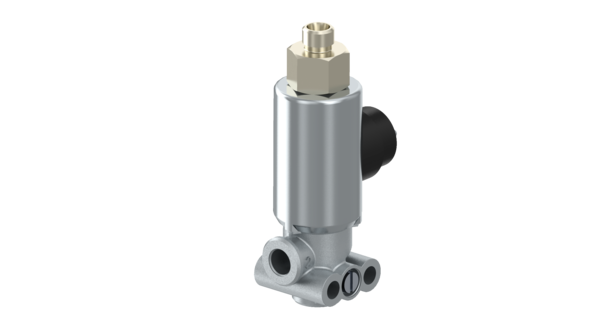

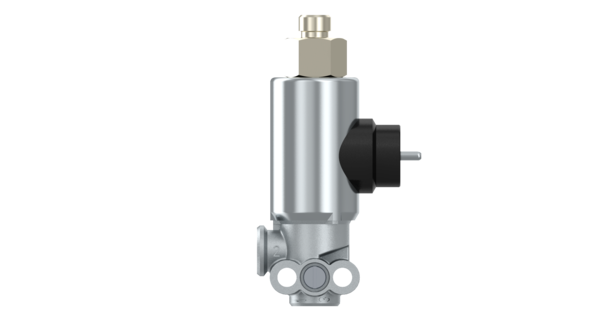

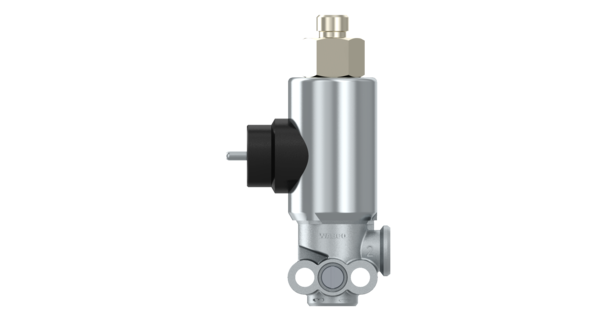

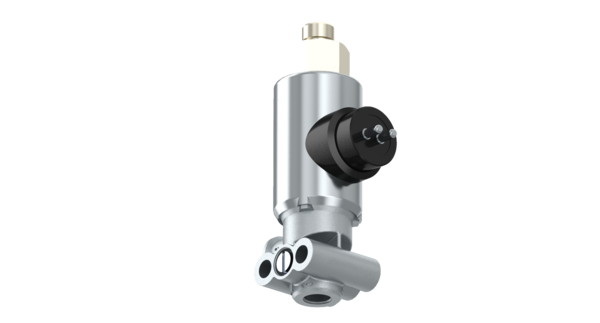

Solenoid Valve
Part Number: 4721710000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.37668 |
| Electrical connection | M27 x 1 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M14 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 7895851026902 |
| Size (mm x mm x mm) | 129 x 73 x 40 |
| UPC | 193133443179 |
| Weight (kg) | 0.602 |
| Weight (lb) | 1.3272 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6537092 |
| DAF | 1639096 |
| DAF | 0644431 |
| IRISBUS | 5006305805 |
| IVECO | 42546462 |
| IVECO | 5006305805 |
| IVECO | 9472128908 |
| IVECO | E4420001031 |
| IVECO | 4834687 |
| IVECO | 98444992 |
| KENWORTH | S472-171-000-0 |
| KÄSSBOHRER | 21145210024 |
| MACK | 6300-4721710000 |
| MERCEDES-BENZ | 0009971012 |
| MERCEDES-BENZ | A0009971012 |
| MERITOR | S4721710000 |
| PETERBILT | S472-171-000-0 |
| SAF | 4425007200 |
| SCANIA | 2089743 |
| SOLARIS | 1102730300 |
| TIRSAN | 21145210024 |
| VAN HOOL | 10652938 |
| VOLVO | WAB4721710000 |
| ZORZI | 1013101 |
