Description

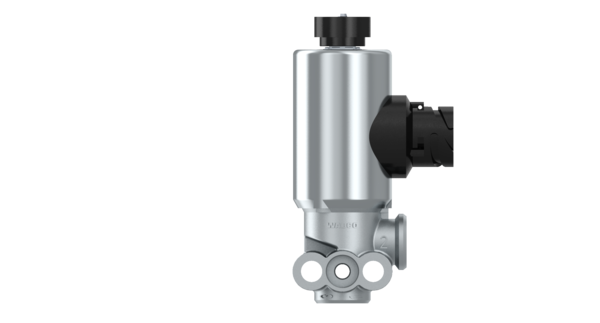

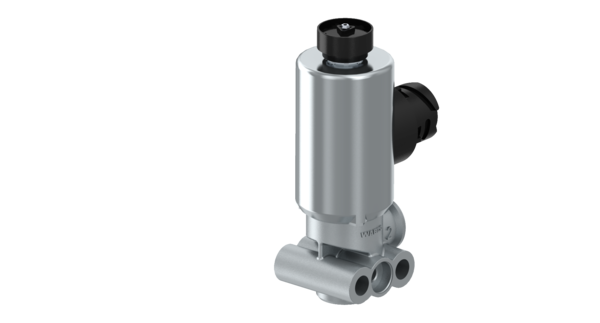

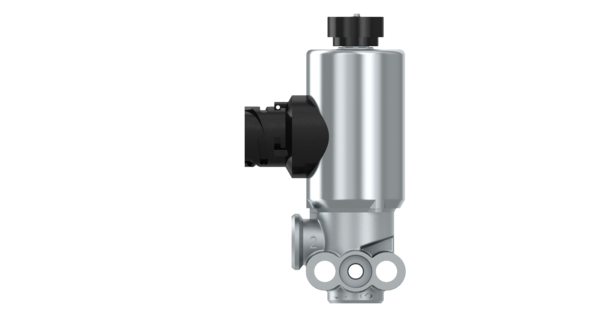

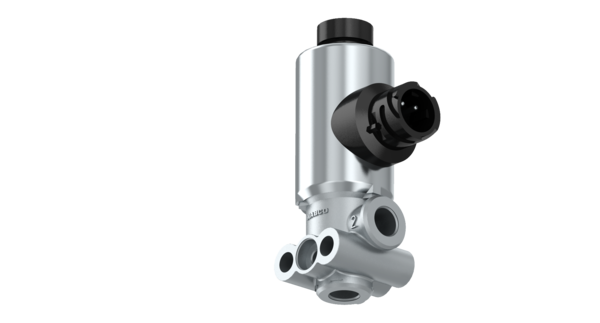

Solenoid Valve
Part Number: 4720706280
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.26387 |
| Electrical connection | Bayonet DIN 72 585 A1-3.2-Sn/K1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | 3x M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 7895851069244 |
| Size (mm x mm x mm) | 112 x 62 x 38 |
| UPC | 193133310617 |
| Weight (kg) | 0.529 |
| Weight (lb) | 1.1662 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 445332048 |
| ERF | 4124112 |
| MAN | 81521606116 |
| MAN | 81521606118 |
| MAN | 81521606124 |
| MAN | 81521609116 |
| MAN | 81521606120 |
| MAN | 4124112 |
| NEOPLAN | 81521606116 |
| SCANIA | 1934949 |
| VAN HOOL | 11000746 |
