Description

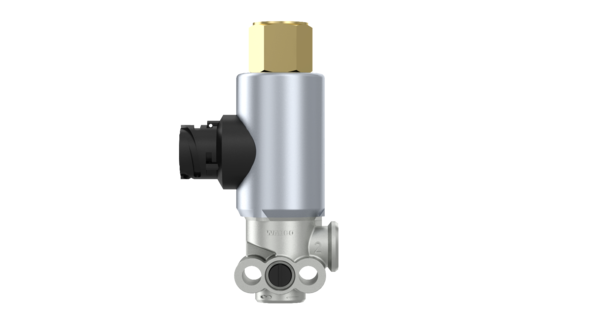

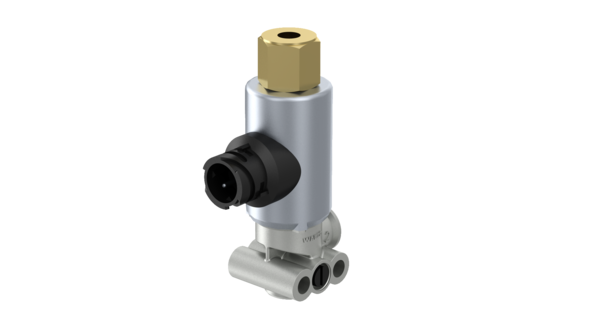

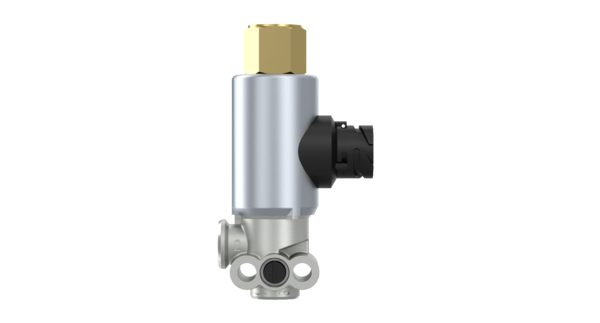

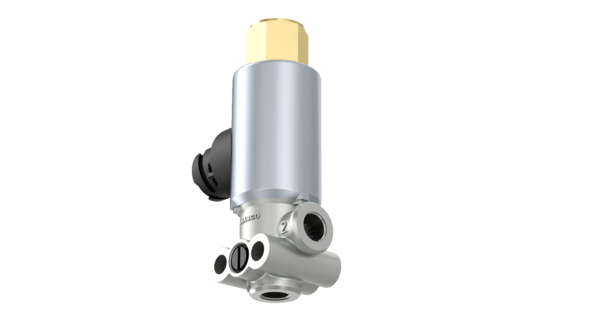

Solenoid Valve
Part Number: 4721732860
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3172 |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K2 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 JED 464 |
| Port thread 2 | M12 x 1.5 JED – 464 |
| Port thread 3 | M12 x 1.5 JED 464 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218470 |
| Size (mm x mm x mm) | 122 x 65 x 40 |
| UPC | 193133311188 |
| Weight (kg) | 0.602 |
| Weight (lb) | 1.3272 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRISBUS | 5010446095 |
| IRISBUS | 50064460950057096716 |
| IVECO | 5010446095 |
| IVECO | 5006446095 |
| LOHR | F10005814 |
| RENAULT | 5010446095 |
| SCANIA | 2089748 |
