Description

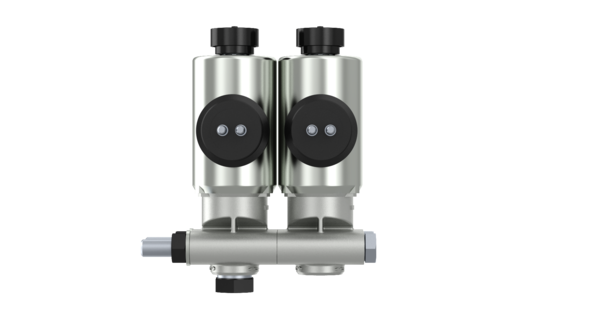

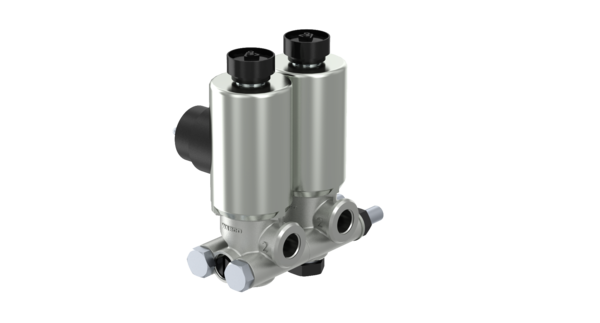

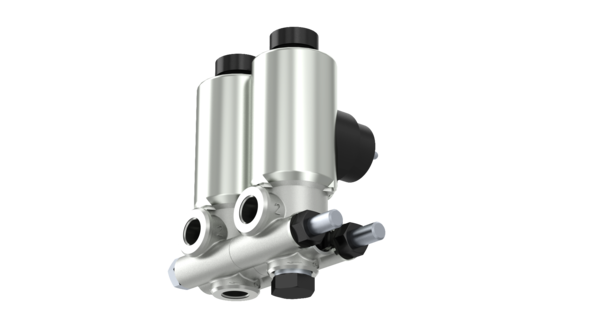

Solenoid Valve
Part Number: 4722706000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.80041 |
| Electrical connection | 2x M27 x 1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 7895851034815 |
| Size (mm x mm x mm) | 105 x 121 x 63 |
| UPC | 193133312086 |
| Weight (kg) | 1.184 |
| Weight (lb) | 2.6103 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505431 |
| EVOBUS | A0039977136 |
| MERCEDES-BENZ | 6644300081 |
| MERCEDES-BENZ | A6644300081 |
| MERCEDES-BENZ | 0039977136 |
| MERCEDES-BENZ | A0039977136 |
| NEOPLAN | 11017379 |
| NEOPLAN | 110254005 |
