Description

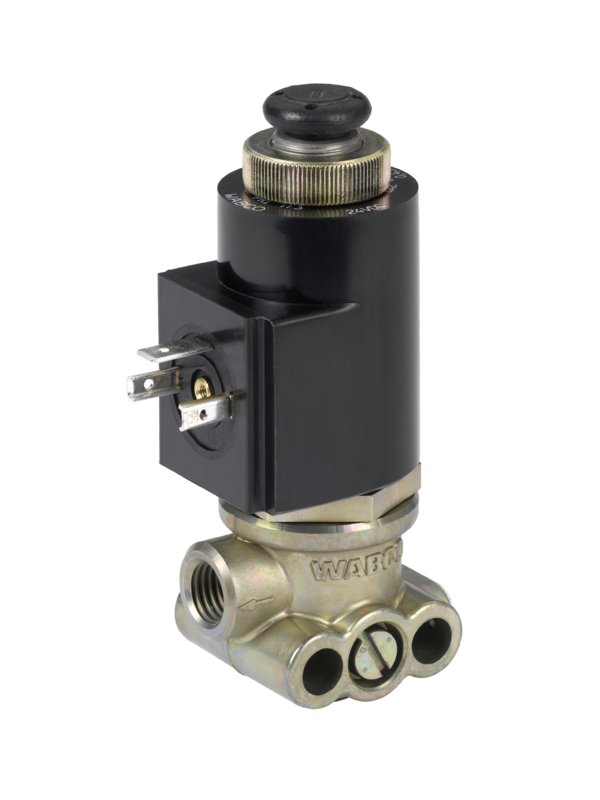

Solenoid Valve
Part Number: 4721231420
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.5 |

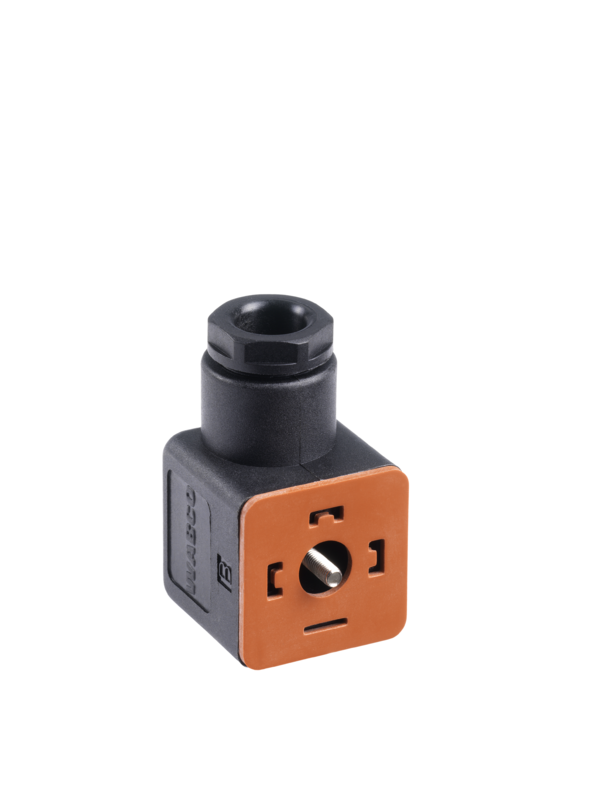

| Electrical connection | EN 175301-803-A/ISO 4400 |
| Exhaust | 3.0 mm |
| Max. operating pressure | 10.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 68 |
| Rated current | 430 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Vented |
| Voltage | 24 V |
| GTIN | 04057875217824 |
| Size (mm x mm x mm) | 171 x 68 x 43 |
| UPC | 193133310259 |
| Weight (kg) | 0.536 |
| Weight (lb) | 1.1817 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAUN | 99708410161 |
| FAUN | 8410161 |
| SCANIA | 2089738 |
