Description

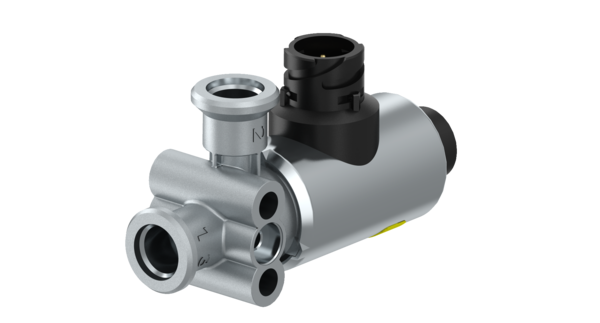

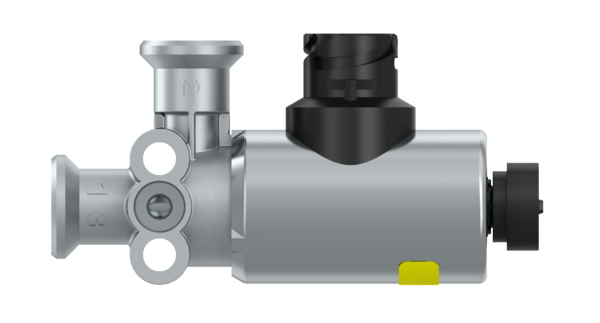

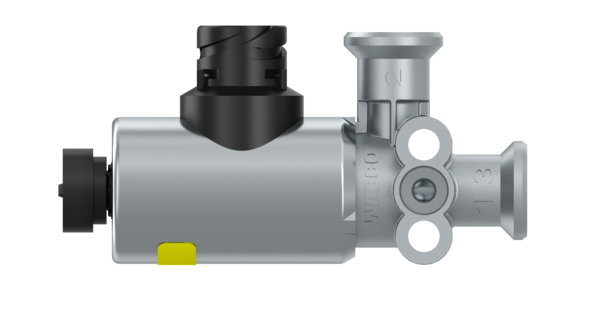

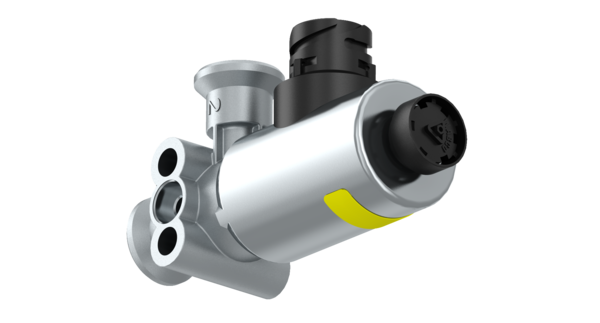

Solenoid Valve
Part Number: 4720726390
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.305 |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K2 |
| Exhaust | 3.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M16 x 1.5 JED 388 |
| Port thread 2 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875217701 |
| Size (mm x mm x mm) | 123 x 62 x 40 |
| UPC | 193133310747 |
| Weight (kg) | 0.54 |
| Weight (lb) | 1.1905 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518100 |
| EVOBUS | A0059971136 |
| MERCEDES-BENZ | 0059971136 |
| MERCEDES-BENZ | A0059971136 |
