Description

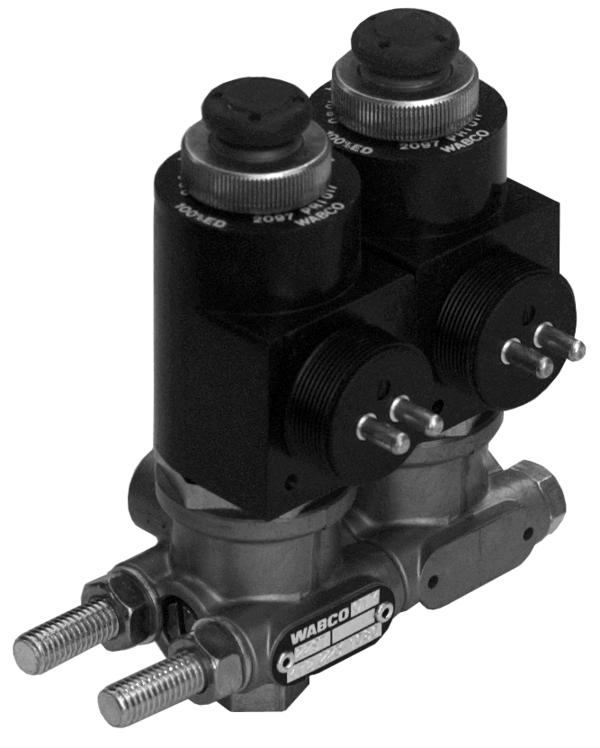

Solenoid Valve
Part Number: 4722231080
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.71209 |
| Electrical connection | 2x M27 x 1 |
| Exhaust | 3.0 mm |
| Max. operating pressure | 10.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 68 |
| Rated current | 430 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875219415 |
| Size (mm x mm x mm) | 107 x 121 x 55 |
| UPC | 193133312116 |
| Weight (kg) | 1.119 |
| Weight (lb) | 2.467 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | ABA0039971236 |
| EVOBUS | A0039971236 |
| GOLDHOFER | 163932 |
| MERCEDES-BENZ | 0039971236 |
| MERCEDES-BENZ | A0039971236 |
| NEOPLAN | 240612601 |
