Description

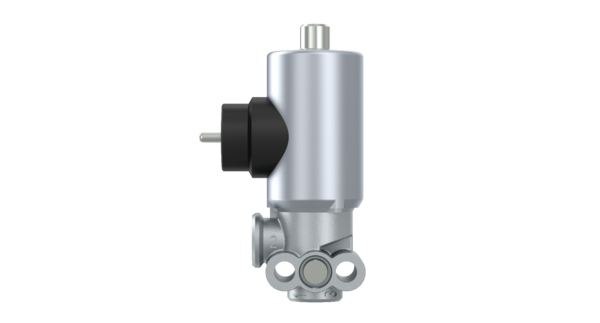

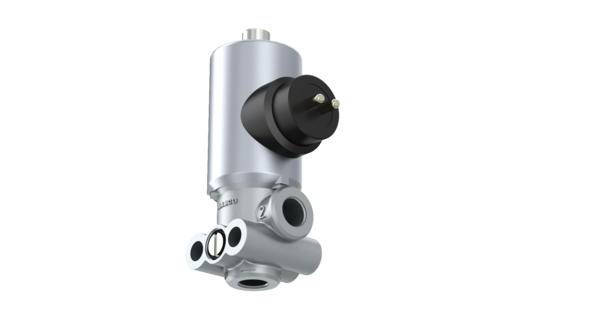

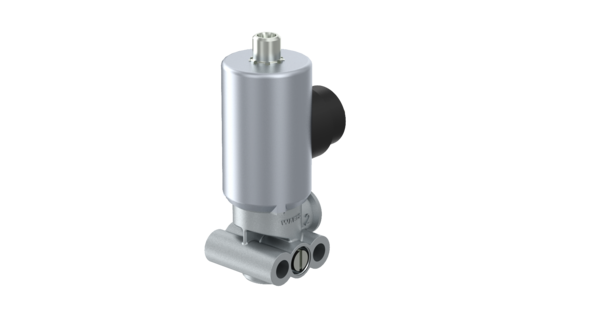

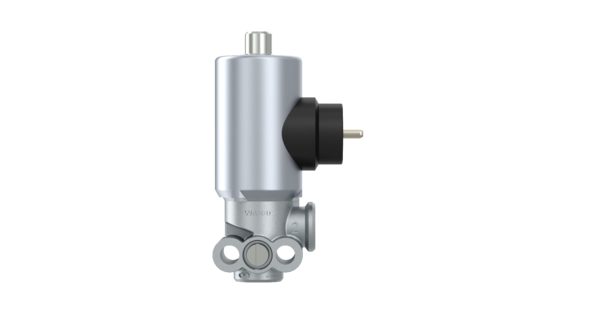

Solenoid Valve
Part Number: 4721737030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.2486 |
| Electrical connection | M27 x 1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 12 V |
| GTIN | 04057875218579 |
| Size (mm x mm x mm) | 40 x 113 x 55 |
| UPC | 193133311140 |
| Weight (kg) | 0.548 |
| Weight (lb) | 1.2081 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | 1531984C1 |
| DEUTZ | 4400055 |
| EVOBUS | A0039976636 |
| JOHN DEERE | AL119443 |
| MERCEDES-BENZ | 0039976636 |
| MERCEDES-BENZ | A0039976636 |
