Description

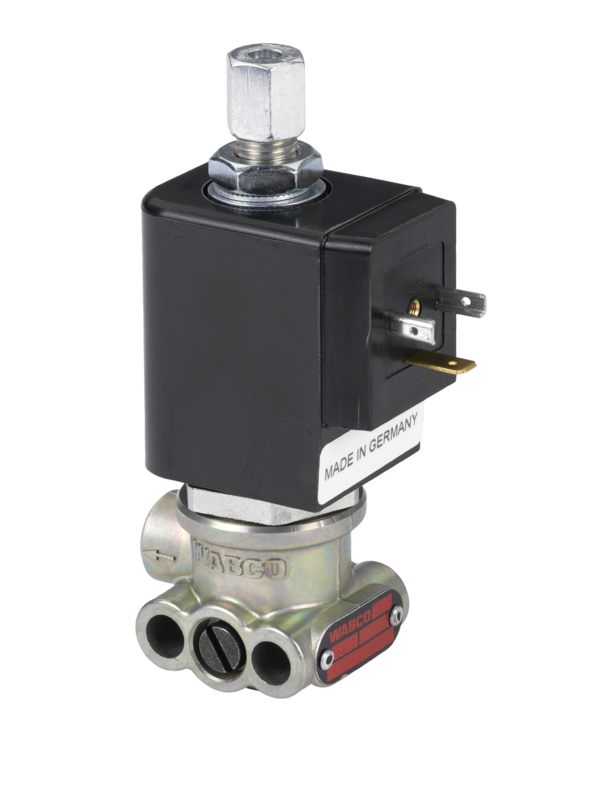

Solenoid Valve
Part Number: 4721020407
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.51045 |
| Exchange unit for | 4721020400 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 8.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.6 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 65 |
| Rated current | 370 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +70°C |
| Type | Normally Open |
| Voltage | 10.8/28.8 V |
| GTIN | 04057875217794 |
| Size (mm x mm x mm) | 83x123x50 |
| UPC | 193133310778 |
| Weight (kg) | 0.657 |
| Weight (lb) | 1.45 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506136R |
| MERCEDES-BENZ | 000763265280 |
| PACCAR | 1506136R |
| SCANIA | 1934951 |
