Description

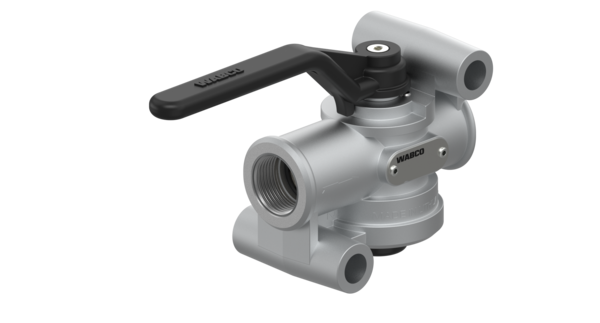

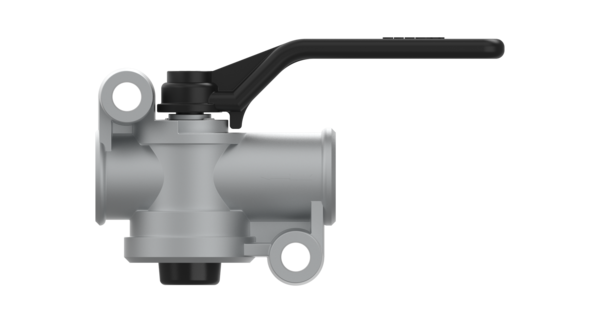

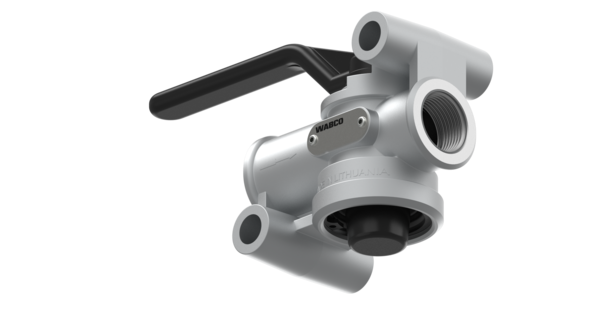

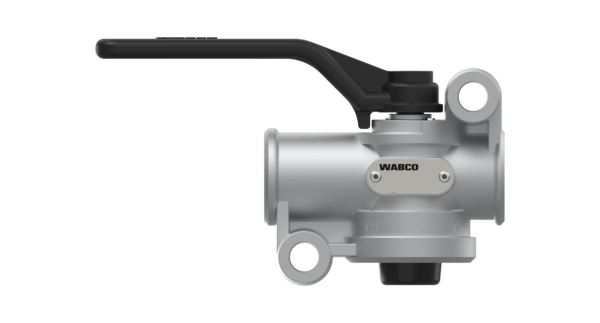

Shut Off Cock
Part Number: 9520020000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | One Direction 90° |
| Calculated Volume (dm³) | 0.59784 |
| Comments | 2/2 |
| Distance between holes | 60/84 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2 bolt holes Ø 10 mm |
| Nominal diameter | 12.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | With exhaust |
| GTIN | 7895851055315 |
| Size (mm x mm x mm) | 141 x 80 x 53 |
| UPC | 193133366829 |
| Weight (kg) | 0.562 |
| Weight (lb) | 1.239 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0108756 |
| VOLVO | 8152904 |
