Description

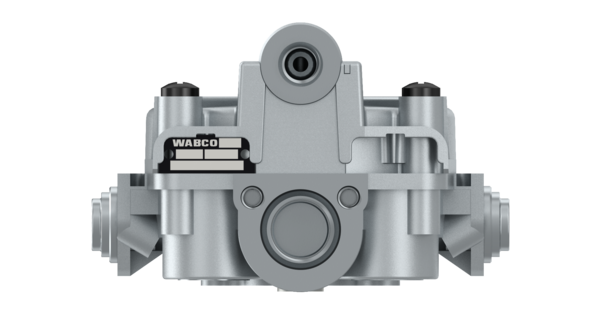

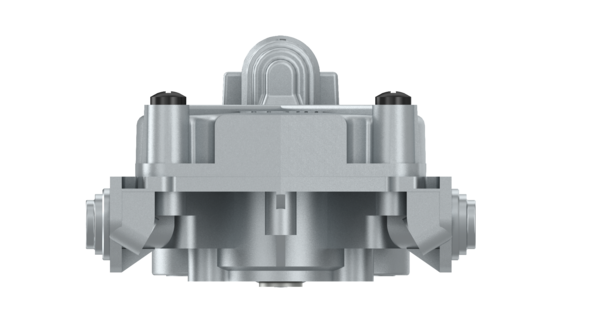

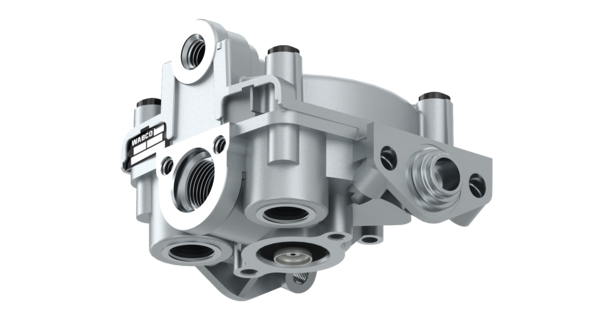

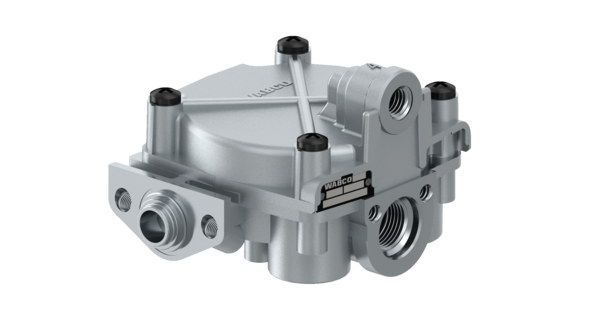

Relay Valve
Part Number: 9730110280
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.073 |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 0.7 bar |
| Port thread 1 | 1/2″ – 14 Dry Seal NPTF |
| Port thread 4 | 1/4″ – 18 Dry Seal NPTF |
| Predominance | 0.20 bar |
| Product category | Device |
| Regulating ratio | 1:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | Pressure reduction |
| GTIN | 04057875303886 |
| Packaging size (mm x mm x mm) | 240 x 190 x 135 |
| Packaging volume (dm³) | 6.16 |
| Size (mm x mm x mm) | 101 x 128 x 83 |
| UPC | 193133450221 |
| Weight (kg) | 0.678 |
| Weight (lb) | 1.4947 |
