Description

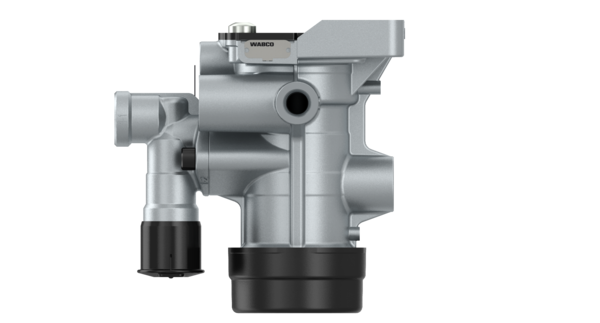

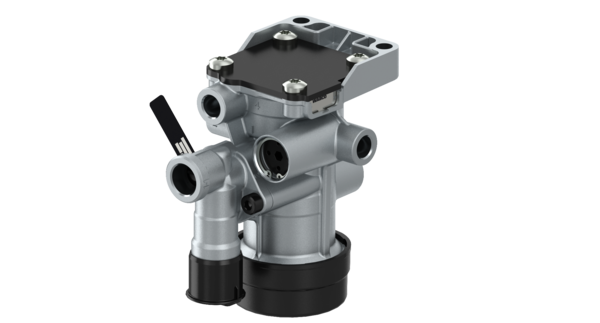

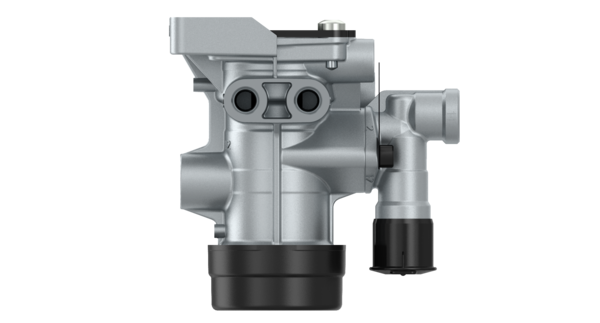

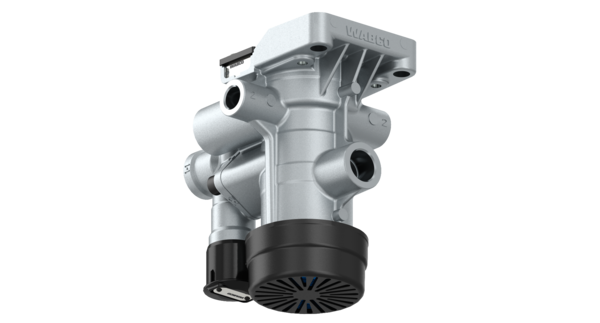

Relay Emergency Valve with Release Valve
Part Number: 9710020220
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.095 |
| Comments | Combination of 9710020200 and release valve 9630010130 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | M22 x 1.5 JED-152 |
| Port thread 2 | 3x M16 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED-152 |
| Predominance | 0 |
| Product category | Device |
| Range of adjustment | 0.7 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | With brake valve and Release valve |
| GTIN | 04057876223305 |
| Size (mm x mm x mm) | 169 x 110 x 166.5 |
| UPC | 193133534624 |
| Weight (kg) | 1.355 |
| Weight (lb) | 2.987 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | 87019852 |
| DAF | 1519311R |
| DAF | 1519312 |
| DAF | 1519313R |
| DAF | 1519310 |
| DOLL | 8143073 |
| FAYMONVILLE | 10549 |
| FELDBINDER | 11609 |
| FELDBINDER | 011609 |
| FREIGHTLINER | TDAS9710027000 |
| GOLDHOFER | 163413 |
| JOHN DEERE | DC54371 |
| KEMPF | 2101008 |
| KENWORTH | S9710027000 |
| KÄSSBOHRER | 8283884000 |
| LANGENDORF | 1133363 |
| LIEBHERR | 502814801 |
| MACK | 6300-9710027000 |
| MERITOR | S9710027000 |
| PACCAR | 1519312 |
| PETERBILT | S9710027000 |
| SCANIA | 2090080 |
| SCANIA | 2090081 |
| SCANIA | 1935619 |
| SCANIA | 1935620 |
| SCANIA | 2090079 |
| SCHMITZ CARGOBULL | 1060752 |
| SCHMITZ CARGOBULL | 8283884000 |
| SCHMITZ CARGOBULL | 53355 |
| SCHMITZ CARGOBULL | INS0120001 |
| SCHMITZ CARGOBULL | 053355 |
| SCHWARZMÜLLER | 32939 |
| VAN HOOL | 10558850 |
| VOLVO | WA9710027017 |
| VOLVO | WAB9710027000 |
| VOLVO | WA9710027007 |
| ZORZI | 1012005 |
