Description

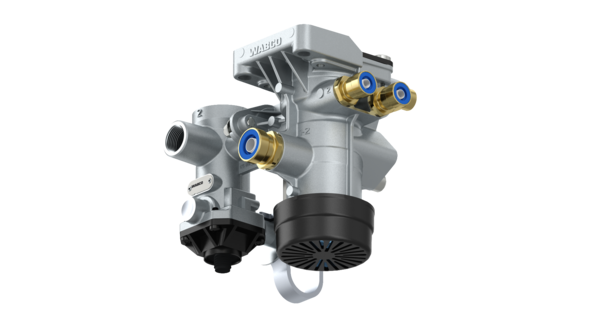

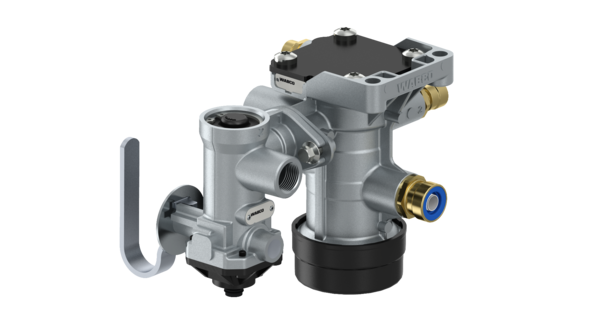

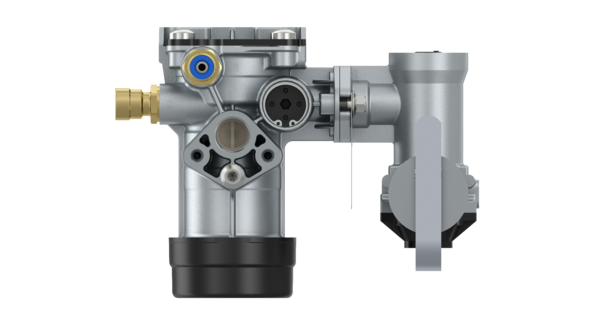

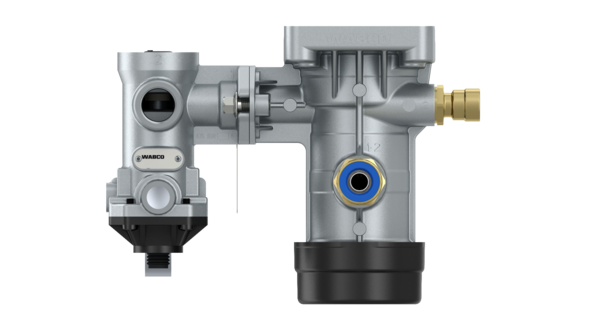

Relay Emergency Valve with LS-man
Part Number: 9710020350
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.915 |
| Comments | Combination of 9710020300, manual LSV 4756040410 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | Ø 15×1.5 |
| Port thread 2 | 2x Ø 10×1 / 1x M22 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | Ø 8×1 |
| Predominance | 0 |
| Product category | Device |
| Range of adjustment | 0.7 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057876223527 |
| Size (mm x mm x mm) | 226 x 180 x 170 |
| UPC | 193133536628 |
| Weight (kg) | 2.097 |
| Weight (lb) | 4.623 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519307 |
| DAF | 1518260 |
| GOLDHOFER | 200211 |
| JOHN DEERE | AZ50946 |
| KEMPF | 2101008 |
| KEMPF | 2101019 |
| KENWORTH | S971-002-570-0 |
| KRONE | 500945148 |
| KRONE | 945079 |
| KRONE | 945148 |
| LANGENDORF | 1133362 |
| MERITOR | S9710025700 |
| NEOPLAN | 7101000 |
| PETERBILT | S971-002-570-0 |
| SCANIA | 2090076 |
| SCANIA | 2090074 |
| SCHMITZ CARGOBULL | 050012 |
| SCHMITZ CARGOBULL | 50012 |
| SCHMITZ CARGOBULL | 050022 |
| SCHMITZ CARGOBULL | 054676 |
| SCHMITZ CARGOBULL | 54676 |
