Description

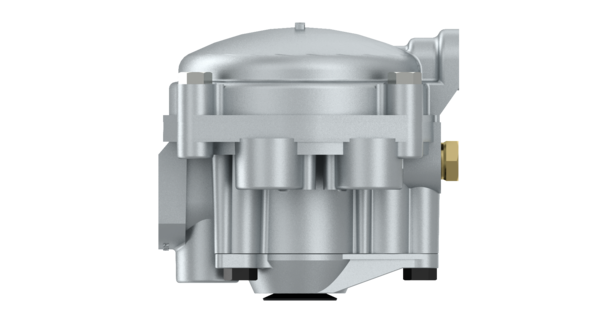

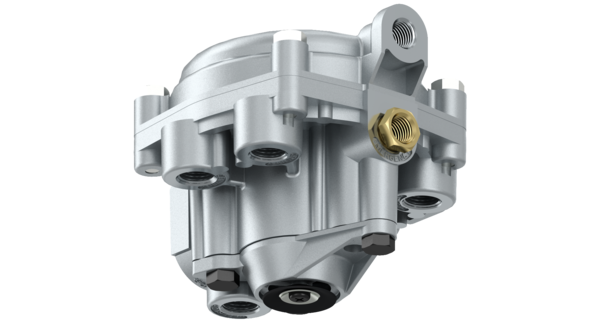

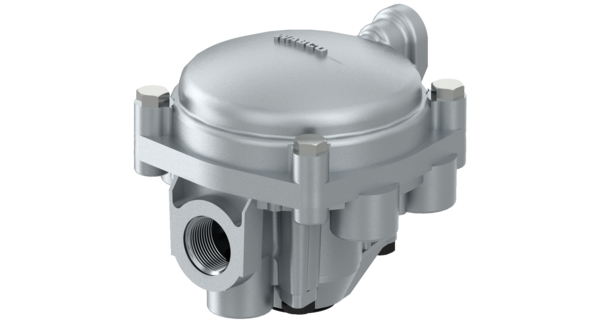

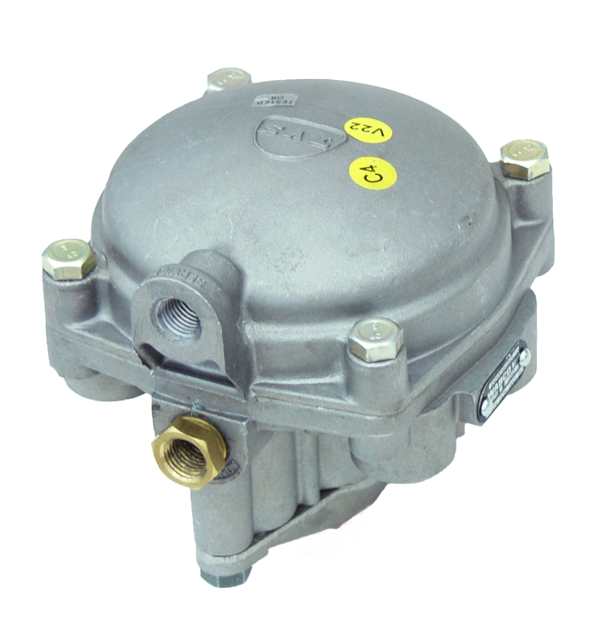

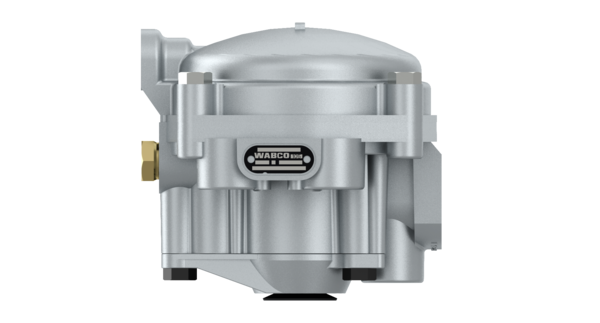

Relay Emergency Valve
Part Number: 9710050000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.93 |
| Max. operating pressure | 9.4 bar |
| Port thread 1 | 1/4″18 Dry Seal NPTF |
| Port thread 12 | 3/8″18 Dry Seal NPTF and 3/4″14 Dry Seal NPTF |
| Port thread 2 | 2x 1/4″18 Dry Seal NPTF and 2x 3/8″18 Dry Seal NPTF |
| Port thread 3 | Flap Exhaust |
| Port thread 4 | 1/4″ – 18 Dry Seal NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875301813 |
| Size (mm x mm x mm) | 116 x 128 x 130 |
| UPC | 193133375586 |
| Weight (kg) | 1.343 |
| Weight (lb) | 2.961 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MACK | 6300-9710050000 |
| MERITOR | R955281865 |
| VOLVO | WAB9710050000 |
