Description

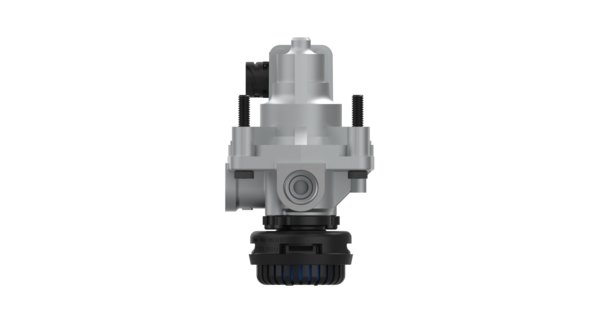

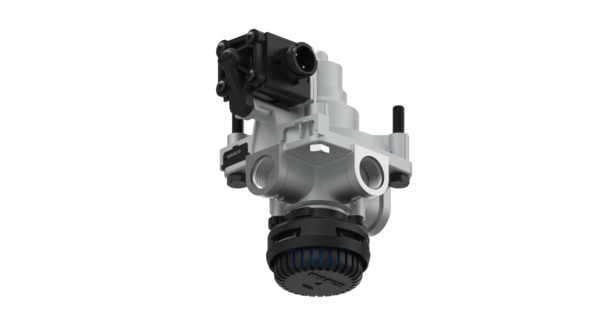

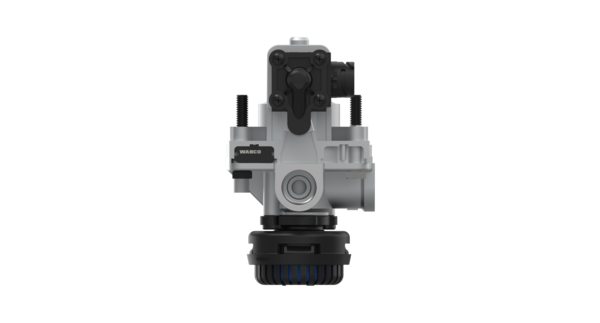

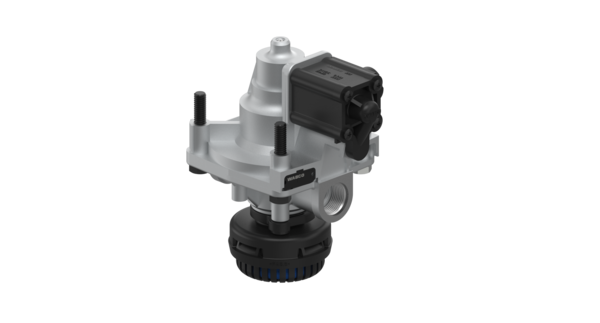

Pressure Regulating Valve
Part Number: 4750200060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 21.0 mm |
| Calculated Volume (dm³) | 2.2888 |
| Delivered pressure | 4.1 at p1 = 10.2 bar |
| Distance between bolts | 75 mm |
| Electrical connection | DIN 72585 1A-2.1-Snbar at p1 = K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4 X M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 170.0 mm |
| Voltage | 24 V |
| GTIN | 04057875223283 |
| Size (mm x mm x mm) | 168 x 131 x 104 |
| UPC | 193133258988 |
| Weight (kg) | 0.996 |
| Weight (lb) | 2.1958 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518119 |
| EVOBUS | A0054293944 |
| EVOBUS | A0044299844 |
| EVOBUS | A0044299944 |
| EVOBUS | A0054290044 |
| EVOBUS | A0054290844 |
| EVOBUS | A0054291544 |
| MERCEDES-BENZ | 0054293944 |
| MERCEDES-BENZ | A0054293944 |
| MERCEDES-BENZ | 0044299844 |
| MERCEDES-BENZ | A0044299844 |
| MERCEDES-BENZ | 0044299944 |
| MERCEDES-BENZ | 0054290044 |
| MERCEDES-BENZ | A0044299944 |
| MERCEDES-BENZ | 0054290144 |
| MERCEDES-BENZ | A0054290044 |
| MERCEDES-BENZ | 0044290844 |
| MERCEDES-BENZ | 0054290844 |
| MERCEDES-BENZ | A0054290844 |
| MERCEDES-BENZ | 0054291544 |
| MERCEDES-BENZ | A0054291544 |
