Description

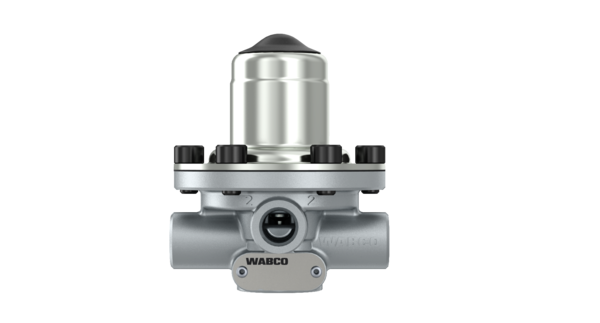

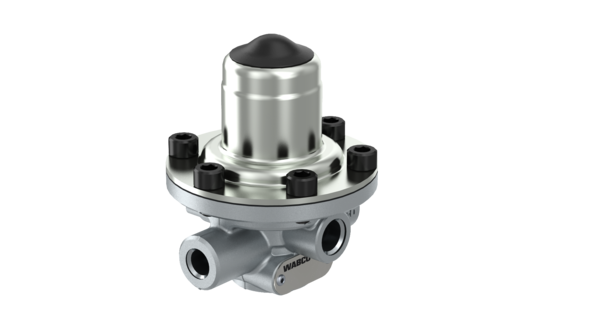

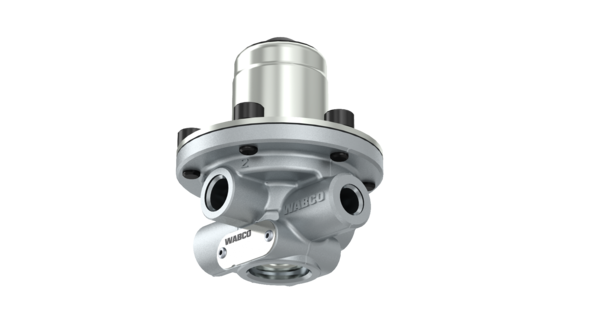

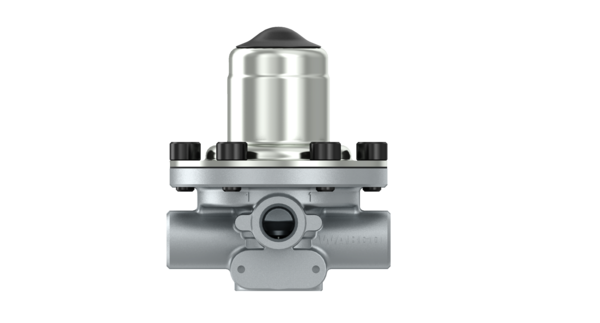

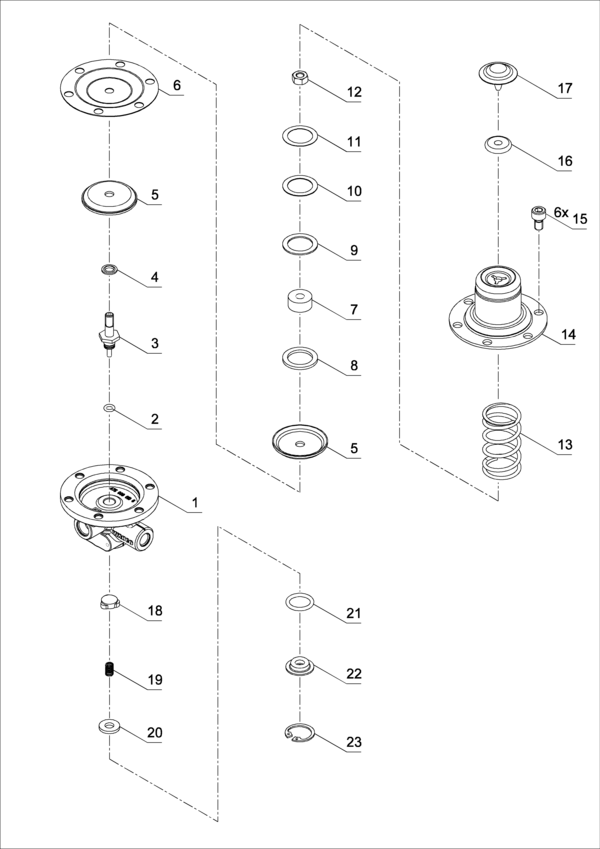

Pressure Reducing Valve
Part Number: 4750090080
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.424 |
| Cooling | Air |
| Delivered pressure | 0.7 at p1 = 8.0 bar |
| Distance between bolts | 54 mm |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 89.0 mm |
| GTIN | 04057875221807 |
| Size (mm x mm x mm) | 73 x 70 x 83 |
| UPC | 193133313854 |
| Weight (kg) | 0.352 |
| Weight (lb) | 0.77603 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81521616260 |
| MAN | 81521619260 |
| NEOPLAN | 81521616260 |
| SCANIA | 1935009 |
| VOLVO | 3169385 |
