Description

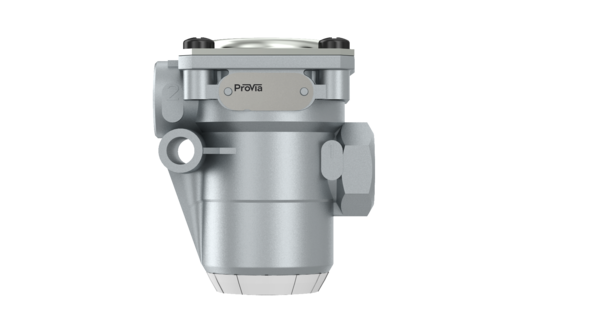

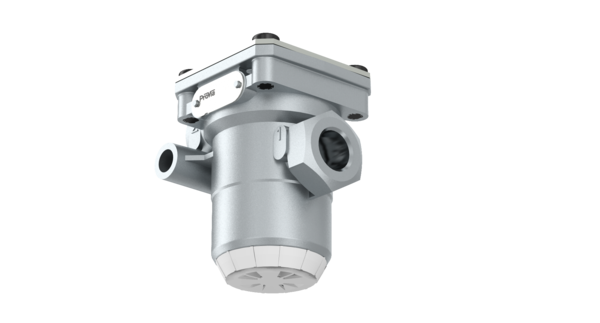

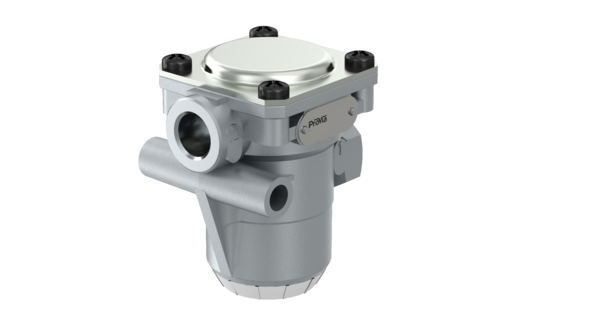

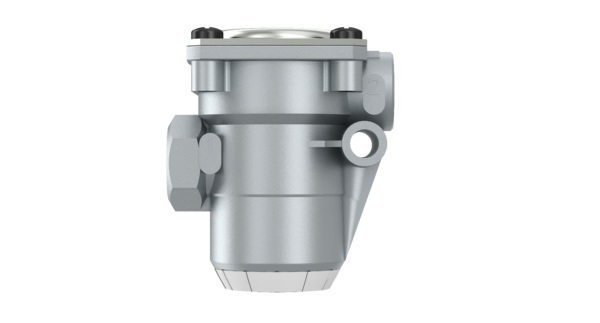

Pressure Limiting Valve
Part Number: PRO0150720
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 0.6624 |
| Delivered pressure | 8.5 at p1 = 11.0 bar |
| Delivery pressure | 8.5 bar |
| Max. operating pressure | 15.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Opening pressure | 11 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Ports | M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Supply pressure | 11 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057877001636 |
| Size (mm x mm x mm) | 100 x 92 x 72 |
| UPC | 193134004553 |
| Weight (kg) | 0.402 |
| Weight (lb) | 0.88626 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 658542 |
| DAF | 1505097 |
| DAF | 1524015 |
| DAF | 1531547 |
| DAF | 20382306 |
| IRISBUS | 8169587 |
| IVECO | 8169587 |
| IVECO | 00163867 |
| IVECO | 08169587 |
| IVECO | 163867 |
| IVECO | 8169586 |
| LEYLAND DAF | EXATRB853 |
| MERCEDES-BENZ | 002 431 24 06 |
| PACCAR | 1505097 |
| PACCAR | 1524015 |
| PACCAR | 1528902 |
| PACCAR | 1708305 |
| RENAULT | 7421339179 |
| RENAULT | 20382312 |
| RENAULT | 2133917 |
| SCANIA | 1935026 |
| VOLVO | 20382312 |
| VOLVO | 21339179 |
| VOLVO | 2133917 |
| VOLVO | 7421339179 |
