Description

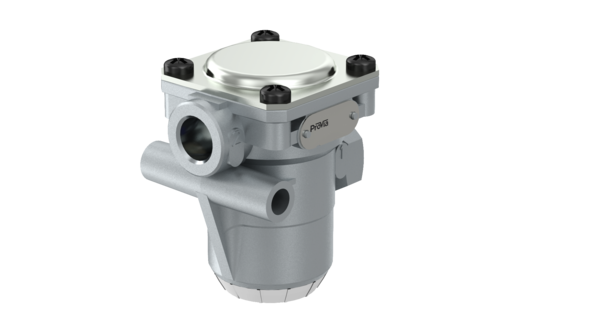

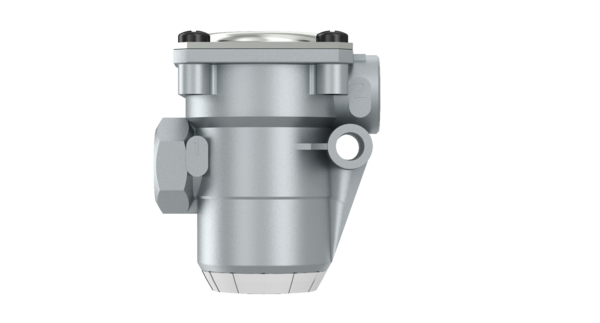

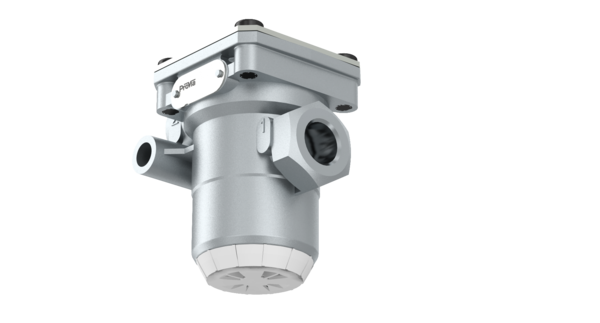

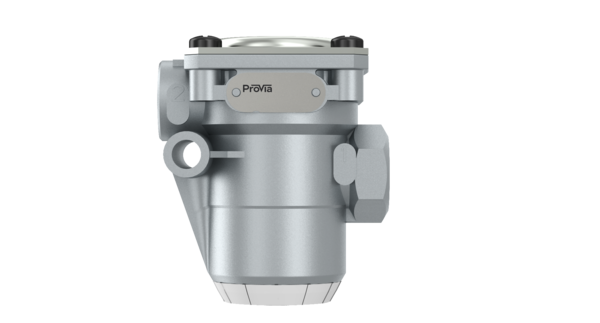

Pressure Limiting Valve
Part Number: PRO0150260
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 0.6624 |
| Delivered pressure | 2.5 at p1 = 8.0 bar |
| Delivery pressure | 2.5 bar |
| Max. operating pressure | 15.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Opening pressure | 5 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Ports | M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Supply pressure | 8 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057877001643 |
| Size (mm x mm x mm) | 100 x 92 x 72 |
| UPC | 193134004065 |
| Weight (kg) | 0.4 |
| Weight (lb) | 0.88185 |
OEM Cross References
| Brand | Reference No |
|---|---|
| VOLVO | 21076527 |
| VOLVO | 21251754 |
