Description

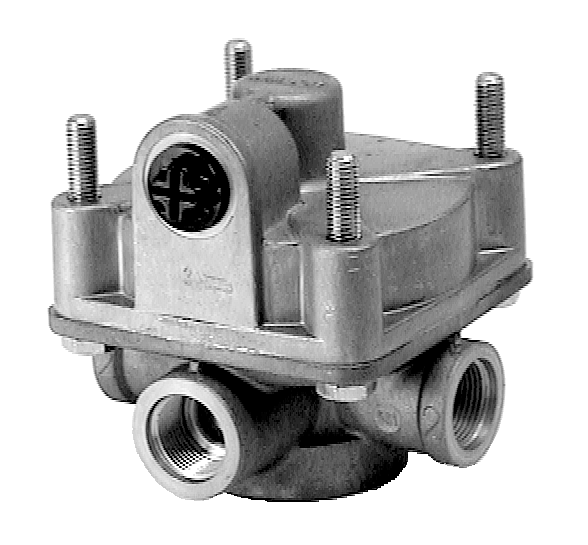

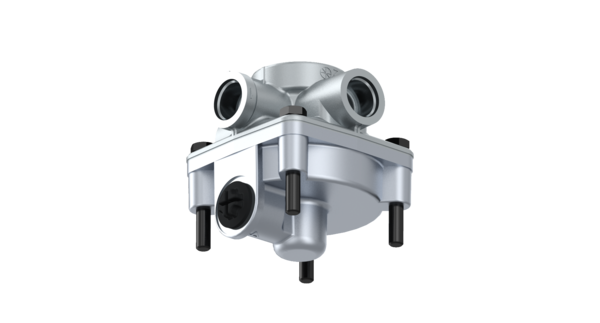

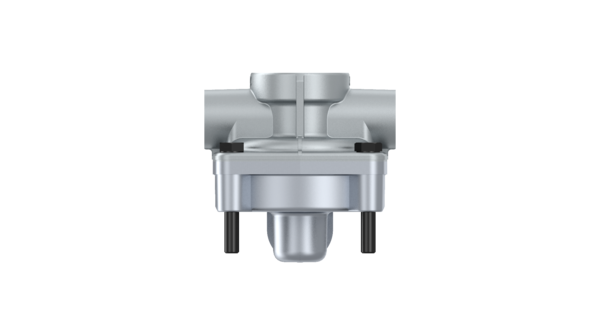

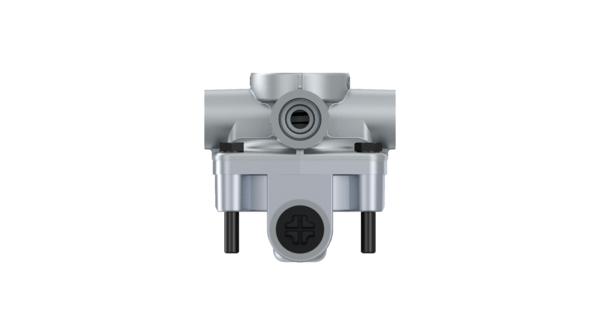

Pressure Limiting Valve
Part Number: 4750190000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 22.5 mm |
| Calculated Volume (dm³) | 1.1011 |
| Cooling | Air |
| Delivered pressure | 0.5 at p1 = 12.0 bar |
| Distance between bolts | 74 mm |
| Max. operating pressure | 12.0 bar |
| Mounting | 4 X M8 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 103.0 mm |
| GTIN | 7895851083592 |
| Size (mm x mm x mm) | 98 x 106 x 106 |
| UPC | 193133258506 |
| Weight (kg) | 1.086 |
| Weight (lb) | 2.3942 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1274469 |
| ERF | 1157852 |
| EVOBUS | A0044294444 |
| IVECO | 500408455 |
| KRONE | 515020968 |
| LEYLAND DAF | 1274469 |
| LOHR | A05021238 |
| MAN | 4750190000 |
| MAN | 1157852 |
| MERCEDES-BENZ | 0044294444 |
| MERCEDES-BENZ | A0044294444 |
| SCANIA | 1935029 |
| SCHMITZ CARGOBULL | 1070068 |
| TIRSAN | 20199001684 |
| VDL | 41274469 |
