Description

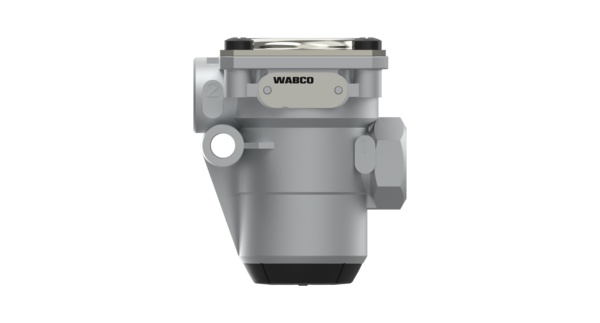

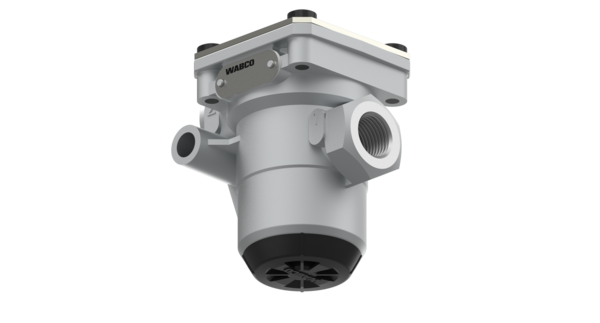

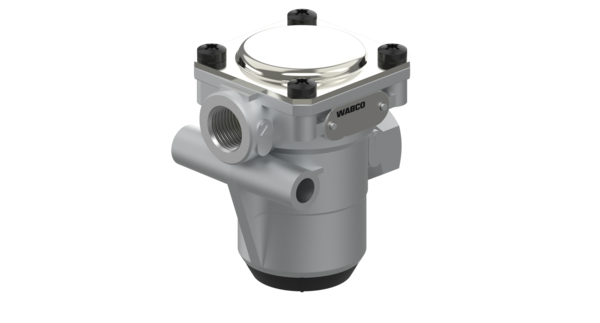

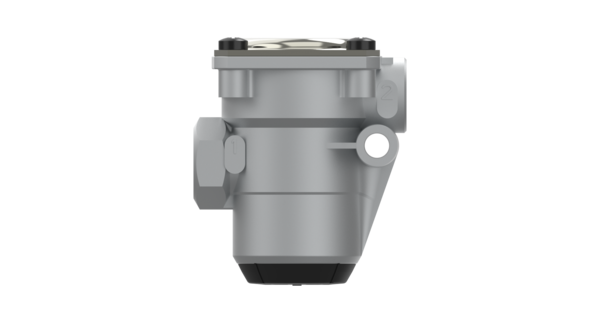

Pressure Limiting Valve
Part Number: 4750150160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.32412 |
| Comments | p1 max.=20 bar (if constant) |
| Delivered pressure | 7.5 at p1 = 10.0 bar |
| Max. operating pressure | 10.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 10 bar |
| Port thread 1 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 4.0 to 8.0 bar |
| Technical specification | OE specification |
| GTIN | 04057875222750 |
| Size (mm x mm x mm) | 71 x 55 x 83 |
| UPC | 193133444336 |
| Weight (kg) | 0.363 |
| Weight (lb) | 0.80028 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518933 |
| EVOBUS | 4750150160 |
| IRISBUS | U403004457 |
| IVECO | 04780200 |
| IVECO | 04780201 |
| IVECO | 04780202 |
| IVECO | 4780200 |
| IVECO | 9475015016 |
| IVECO | 4780201 |
| IVECO | 4780202 |
| KENWORTH | S4750150160 |
| LOHR | 4750150160 |
| MERITOR | S4750150160 |
| PETERBILT | S4750150160 |
| RENAULT | 5000445899 |
| RENAULT | 5021170207 |
