Description

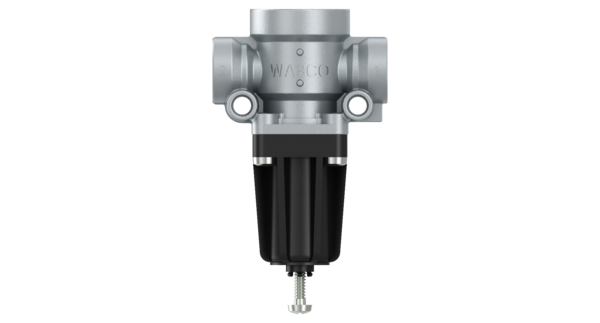

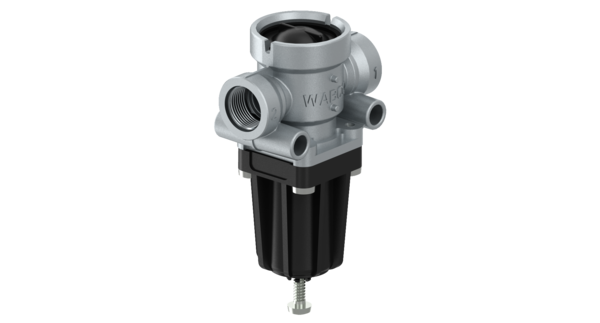

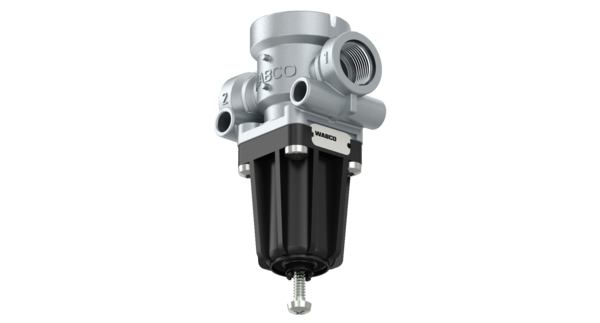

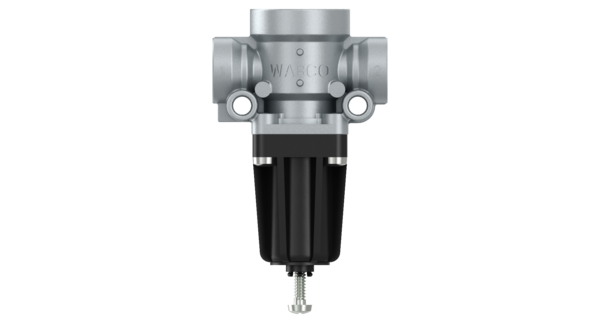

Pressure Limiting Valve
Part Number: 4750103220
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.612 |
| Comments | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 4.2 at p1 = 8.0 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 VOSS |
| Product category | Device |
| Range of adjustment | 1.2 to 6.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222552 |
| Size (mm x mm x mm) | 85 x 131 x 55 |
| UPC | 193133256243 |
| Weight (kg) | 0.35 |
| Weight (lb) | 0.77162 |
OEM Cross References
| Brand | Reference No |
|---|---|
| VDL | 41193483 |
