Description

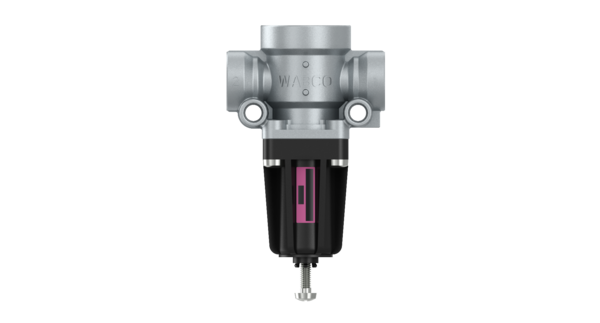

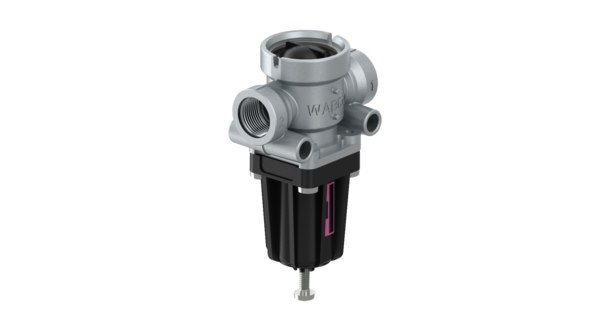

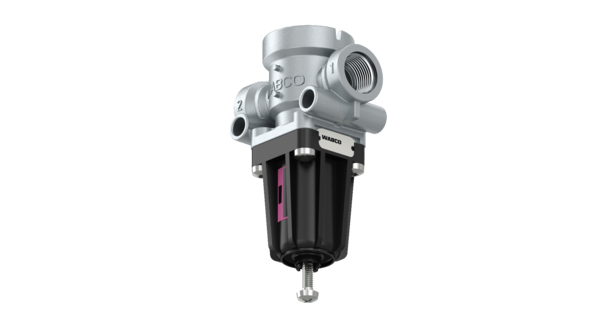

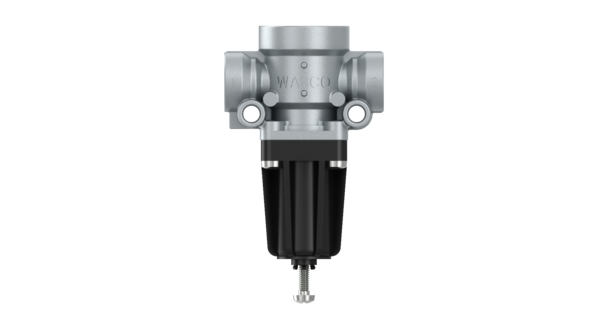

Pressure Limiting Valve
Part Number: 4750103140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.67787 |
| Comments | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 7.0 at p1 = 10.0 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 VOSS |
| Product category | Device |
| Range of adjustment | 5.8 to 10.8 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222491 |
| Size (mm x mm x mm) | 145 x 85 x 55 |
| UPC | 193133256731 |
| Weight (kg) | 0.367 |
| Weight (lb) | 0.8091 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518115 |
| EVOBUS | A0054290444 |
| MAN | 81521016282 |
| MAN | 81521016283 |
| MERCEDES-BENZ | 0054290444 |
| MERCEDES-BENZ | A0054290444 |
| MERCEDES-BENZ | A0054290444001 |
| MERCEDES-BENZ | 0054290444001 |
| NEOPLAN | 81521016283 |
| PACCAR | 1518115 |
| VDL | 31047728 |
