Description

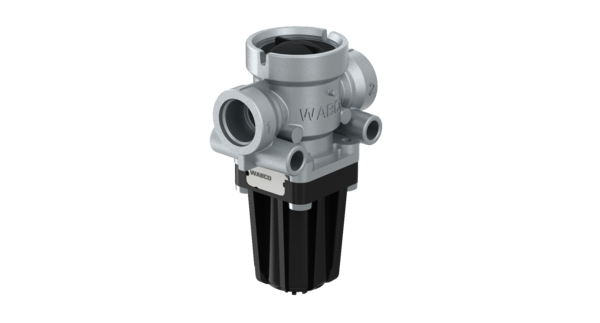

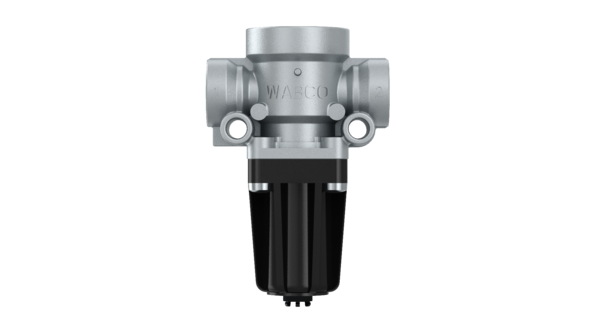

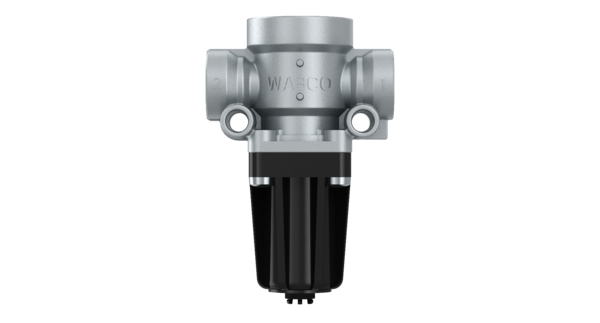

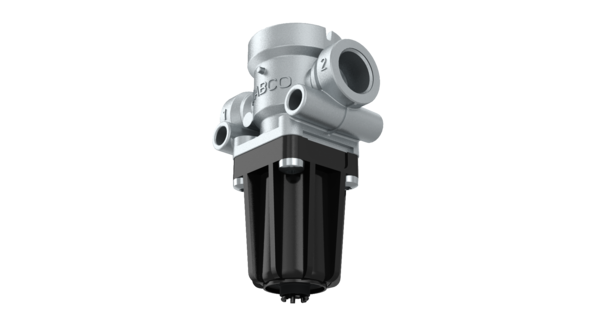

Pressure Limiting Valve
Part Number: 4750103000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.51244 |
| Comments | Port 1 for voss push-in fitting 230: nominal diameter of exhaust ø4 |
| Delivered pressure | 8.5 at p1 = 10.5 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 5.8 to 10.8 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851073531 |
| Size (mm x mm x mm) | 49 x 83 x 126 |
| UPC | 193133444244 |
| Weight (kg) | 0.366 |
| Weight (lb) | 0.80689 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3454402440 |
| DAEWOO | 34544 02440 |
| DAEWOO | P34544 02440 |
| DAF | 1505392 |
| ERF | 1260667 |
| HYUNDAI | 594507C700 |
| HYUNDAI | 59450 7C700 |
| KENWORTH | S4750103000 |
| KING LONG | 235500910 |
| LANGENDORF | 1111697 |
| LEYLAND DAF | EXABRB320 |
| MACK | 6300-4750103000 |
| MAN | 81521016269 |
| MAN | 4750103000 |
| MAN | 1260667 |
| MERITOR | S4750103000 |
| NEOPLAN | 81521016269 |
| OTOKAR | 9900040764 |
| PACCAR | 1505392 |
| PETERBILT | S4750103000 |
| VDL | 297696 |
| VDL | 20297696 |
| VOLVO | WAB4750103000 |
