Description

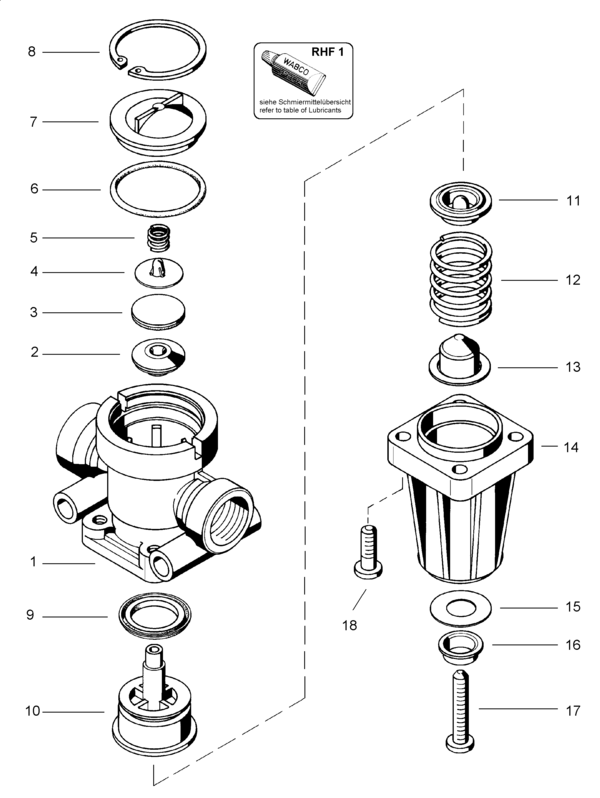

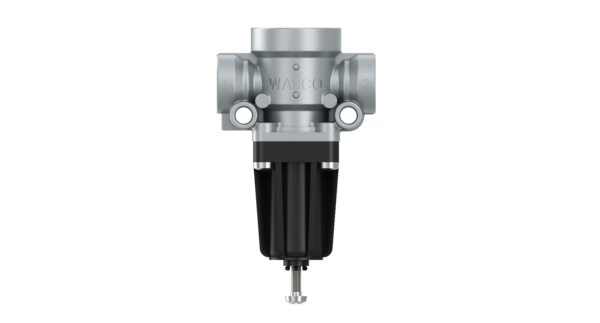

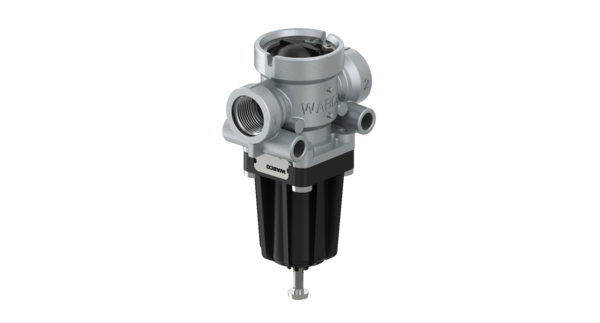

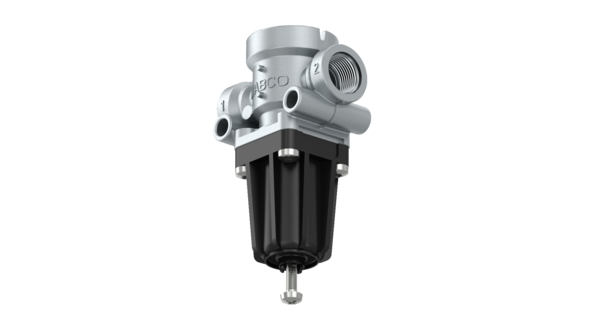

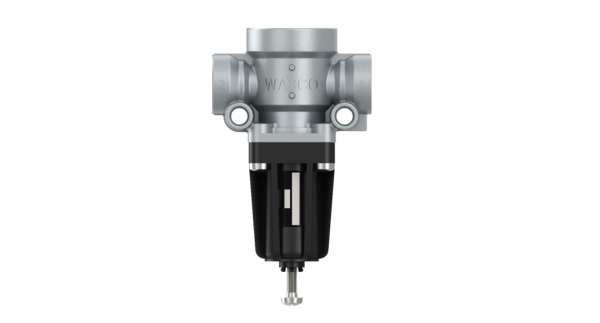

Pressure Limiting Valve
Part Number: 4750103180
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.64823 |
| Comments | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 8.0 at p1 = 12.0 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port threads | M22 x 1.5 VOSS |
| Product category | Device |
| Range of adjustment | 5.8 to 10.8 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222521 |
| Size (mm x mm x mm) | 142 x 83 x 55 |
| UPC | 193133256762 |
| Weight (kg) | 0.367 |
| Weight (lb) | 0.8091 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB750103180 |
| LOHR | A05021237 |
| MAN | 81521016282 |
| MAN | 81521016287 |
| MAN | 36521016008 |
| MERCEDES-BENZ | 0044299644 |
| MERCEDES-BENZ | A0044299644 |
| MERCEDES-BENZ | A0044299644001 |
| MERCEDES-BENZ | 0044299644001 |
| NEOPLAN | 11017354 |
| NEOPLAN | 81521016287 |
