Description

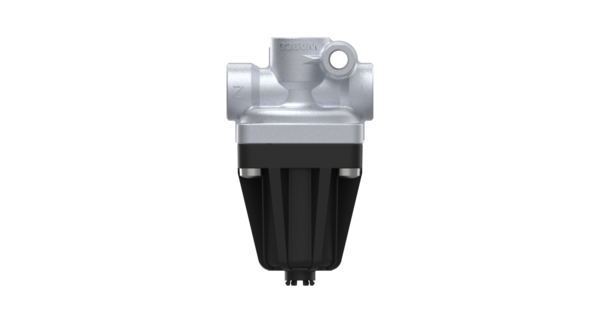

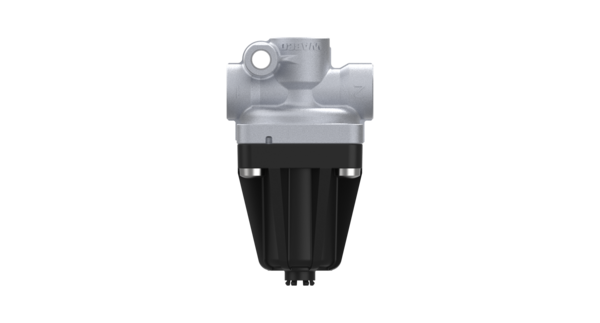

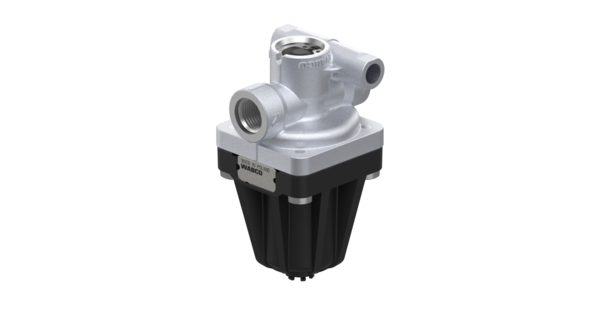

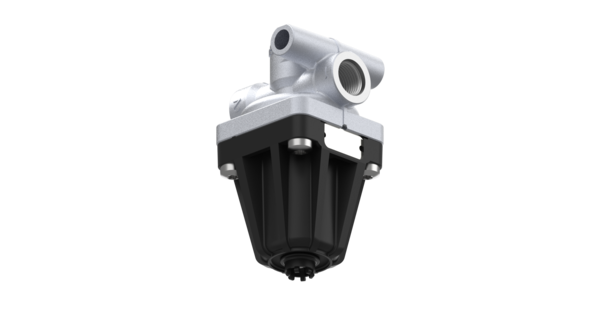

Pressure Limiting Valve
Part Number: 4750091520
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.4261 |
| Delivered pressure | 0.5 at p1 = 8.5 bar |
| Distance between bolts | 66 mm |
| Max. operating pressure | 12.0 bar |
| Mounting | 4x Ø 8.4 mm |
| Port thread 1 | M16 x 1.5 JED-388-3 |
| Port thread 2 | M16 x 1.5 JED – 388-3 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -30°C to +70°C |
| GTIN | 04057875334767 |
| Size (mm x mm x mm) | 115 x 65 x 57 |
| UPC | 193133313649 |
| Weight (kg) | 0.285 |
| Weight (lb) | 0.6283 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2573000 |
