Description

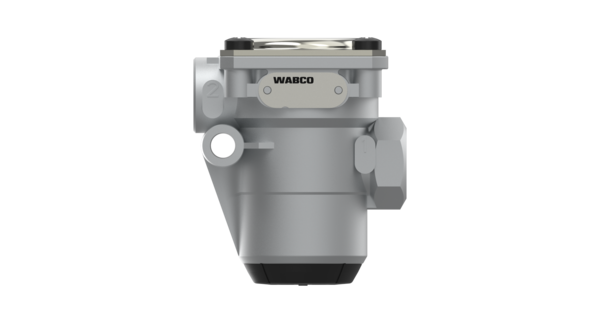

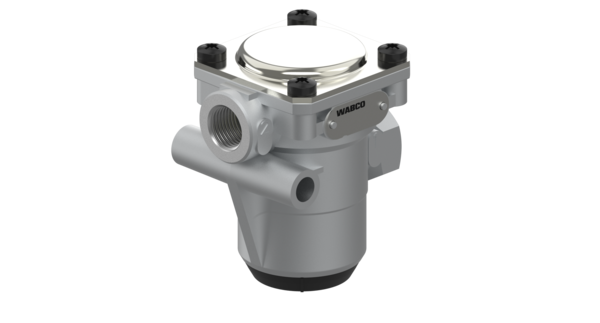

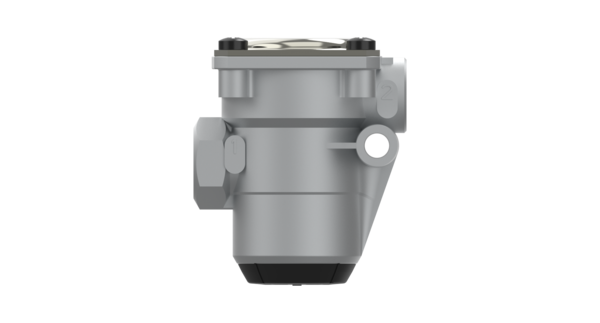

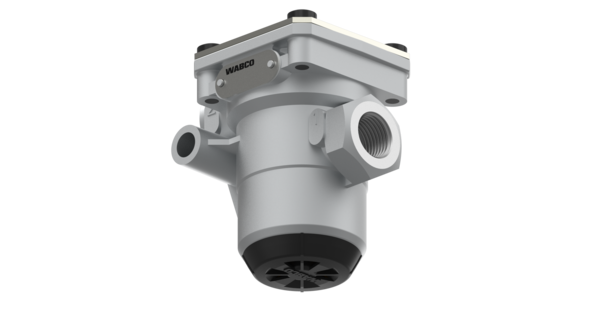

Pressure Limiting Valve
Part Number: 4750154000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3621 |
| Comments | p1 max.=20 bar (if constant) |
| Delivered pressure | 4.5 at p1 = 8.0 bar |
| Max. operating pressure | 20.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 6.7 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 3.5 to 4.5 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875223108 |
| Size (mm x mm x mm) | 71 x 60 x 85 |
| UPC | 193133258094 |
| Weight (kg) | 0.4 |
| Weight (lb) | 0.881848 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506195 |
| FRUEHAUF | A78860M10A01 |
| IRISBUS | 99474412 |
| IVECO | 99474412 |
| KÄSSBOHRER | 21151103342 |
| MAN | 81521016286 |
| NOOTEBOOM | 308061 |
| NOOTEBOOM | 20144 |
| SCANIA | 1935028 |
| TIRSAN | 21151103342 |
| VDL | 1199004 |
