Description

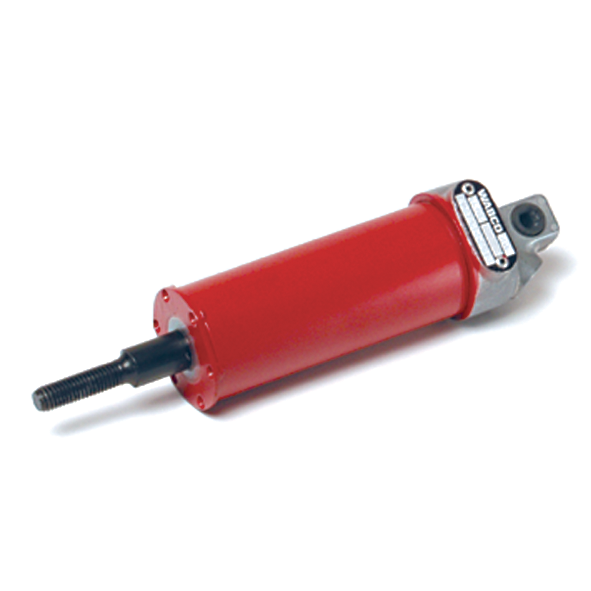

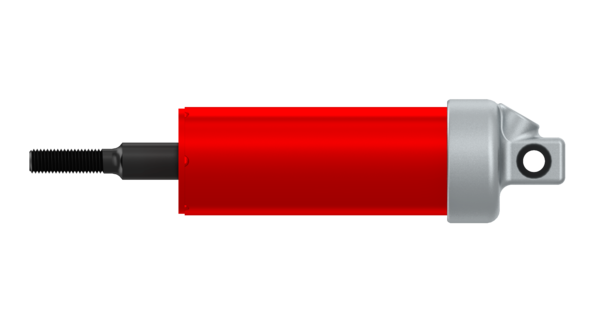

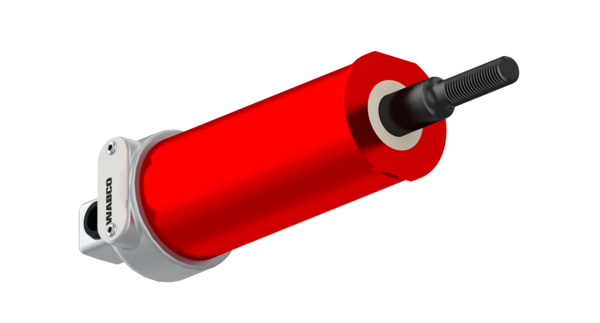

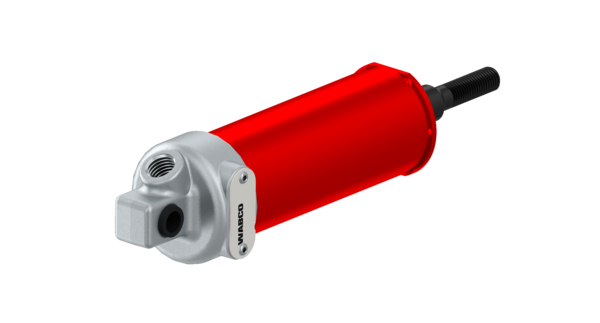

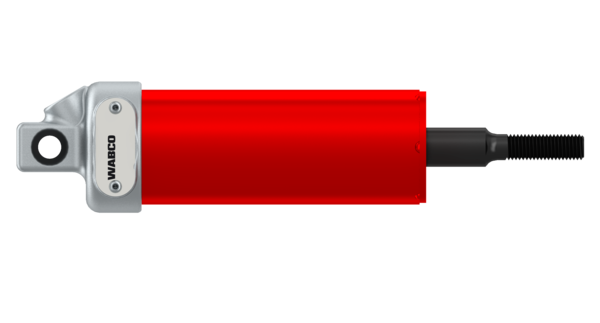

Operating Cylinder
Part Number: 4214100410
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.29064 |
| Comments | Stroke not limited internal |
| Diameter | 35.0 mm |
| Inlet port | M10x1 |
| Length | 162 mm |
| Max. operating pressure | 8.0 bar |
| Mounting | Ø 6 mm |
| Piston diameter | 30.0 mm |
| Piston force | 300 N |
| Port thread 1 | M10 x 1 |
| Port threads | M10 x 1 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 180 N |
| Stroke | 45.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 172.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 34.0 mm |
| GTIN | 04057875159926 |
| Size (mm x mm x mm) | 173 x 42 x 40 |
| UPC | 193133242628 |
| Weight (kg) | 0.447 |
| Weight (lb) | 0.98547 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518608 |
| ERF | 1073757 |
| FAUN | 5220098 |
| HENDRICKSON | NB1636 |
| IVECO | 02406426 |
| IVECO | 42052900 |
| KEMPF | 2005001 |
| KÄSSBOHRER | 21139199010 |
| MAN | 81157016007 |
| MAN | 99100360050 |
| MAN | 4214100410 |
| MAN | 1073757 |
| NEOPLAN | 81157016007 |
| PACCAR | 1518608 |
| RENAULT | 5000469757 |
| RENAULT | 5010098959 |
| RENAULT | 5430063734 |
| RENAULT | 1591033 |
| SCANIA | 2089727 |
| STEYR | 99100360050 |
| TIRSAN | 21139199010 |
| VOLVO | 1591033 |
| VOLVO | 5010098959 |
| VOLVO | 5430063734 |
