Description

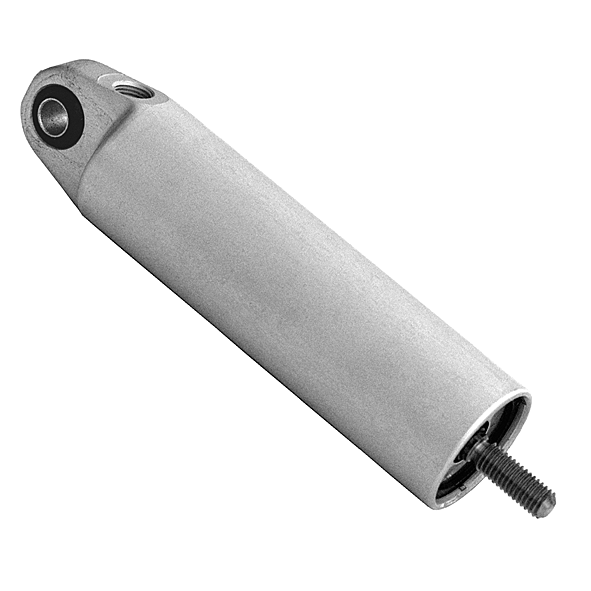

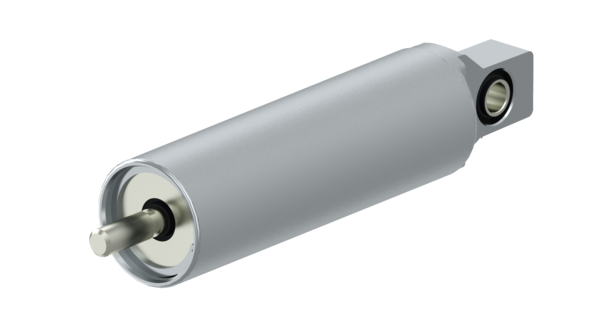

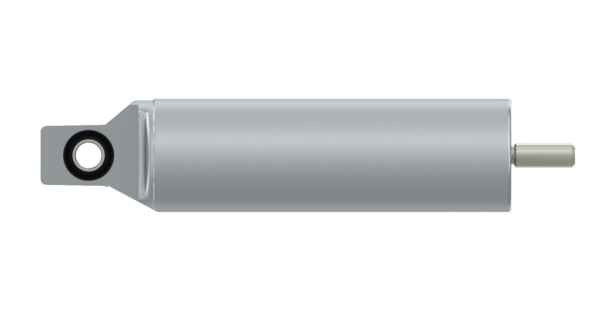

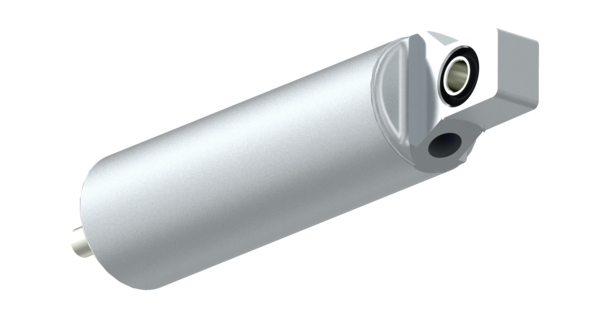

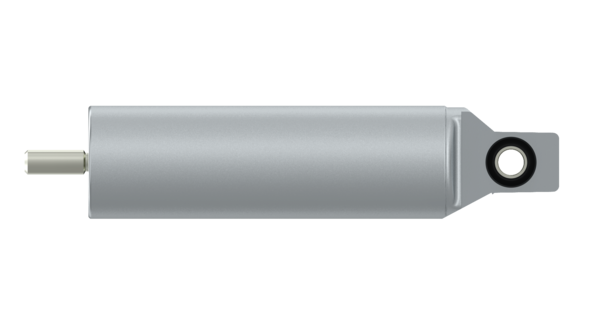

Operating Cylinder
Part Number: 4214450000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.24 |
| Comments | Stroke not limited internal |
| Diameter | 36.5 mm |
| Inlet port | M10x1 |
| Length | 157 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Ø 8.2 mm |
| Piston diameter | 32.0 mm |
| Piston force | 410 N |
| Port thread 1 | M10 x 1 |
| Port threads | M10 x 1 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 355 N |
| Stroke | 52.0 mm |
| Technical specification | OE specification |
| Temperature range | -30°C to +90°C |
| Total length | 156.5 mm |
| Type | Single-acting Cylinder |
| GTIN | 7895851002654 |
| Size (mm x mm x mm) | 145 x 90 x 95 |
| UPC | 193133243687 |
| Weight (kg) | 0.295 |
| Weight (lb) | 0.6504 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB4214450000 |
| DAF | 1505024 |
| MERCEDES-BENZ | 533555101010 |
| PACCAR | 1505024 |
| SCANIA | 1332503 |
| SCANIA | 1932610 |
| SCANIA | 341918 |
| STEYR | 533555101010 |
