Description

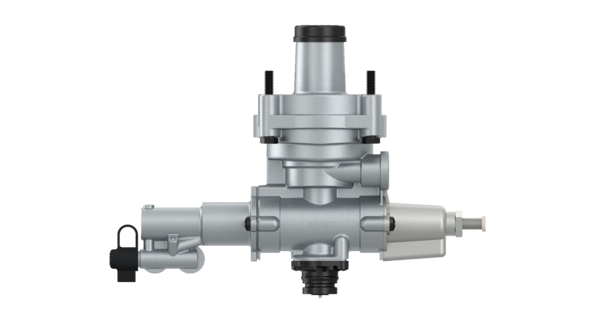

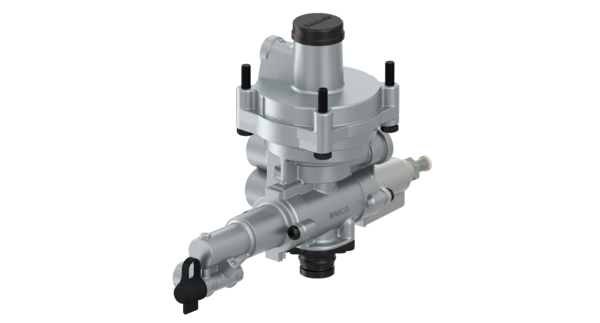

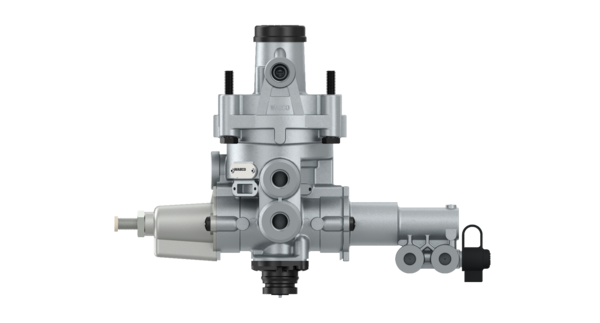

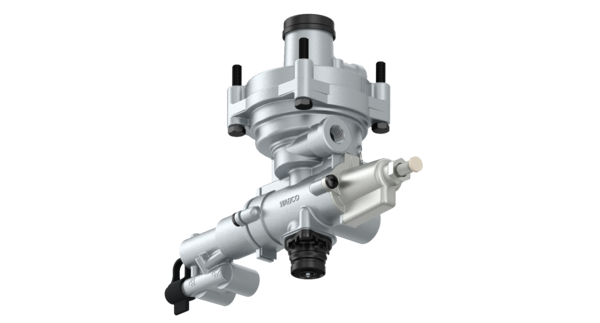

LSV Relay – pneu.
Part Number: 4757110110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 9.152 |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875224709 |
| Size (mm x mm x mm) | 320 x 220 x 130 |
| UPC | 193133262008 |
| Weight (kg) | 1.943 |
| Weight (lb) | 4.2836 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FODEN TRUCKS | 5100493002 |
| MAN | 81521616264 |
| MAN | 81521616323 |
| MAN | 81521616326 |
| NEOPLAN | 81521616264 |
| PACCAR | 5100493002 |
