Description

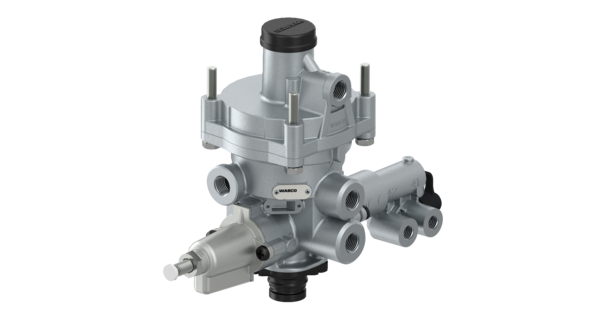

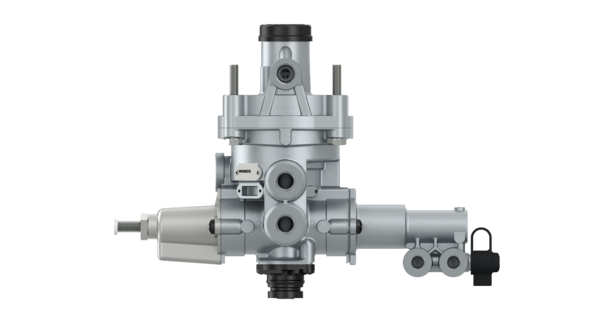

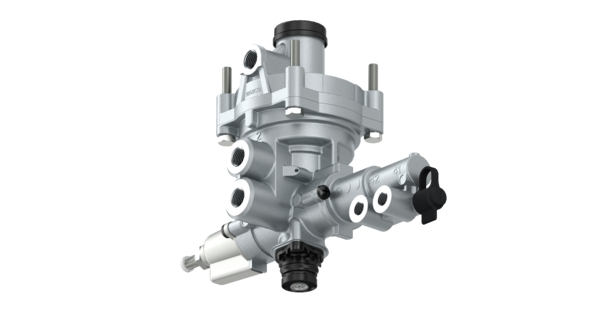

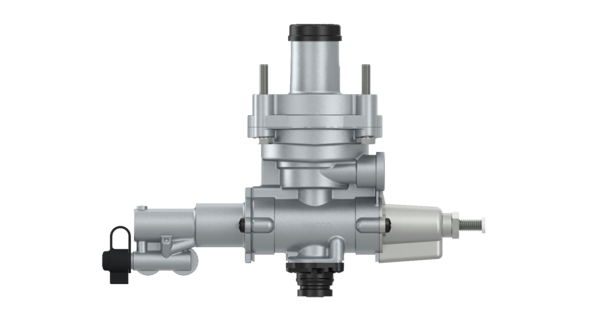

LSV Relay – pneu.
Part Number: 4757110320
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 8.184 |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.45 to 6.1 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875224907 |
| Size (mm x mm x mm) | 120 x 220 x 310 |
| UPC | 193133262558 |
| Weight (kg) | 2 |
| Weight (lb) | 4.4092 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81521616286 |
| MAN | 81521616324 |
| MAN | 81521616327 |
| MAN | 81271200042 |
| NEOPLAN | 81521616286 |
