Description

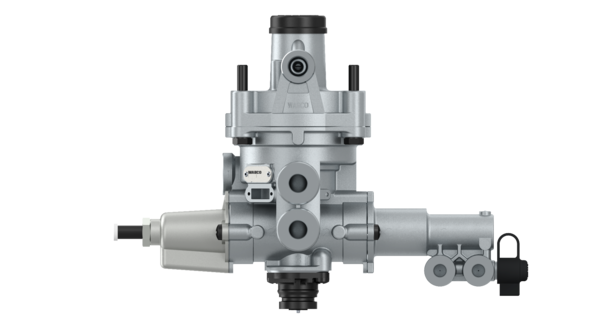

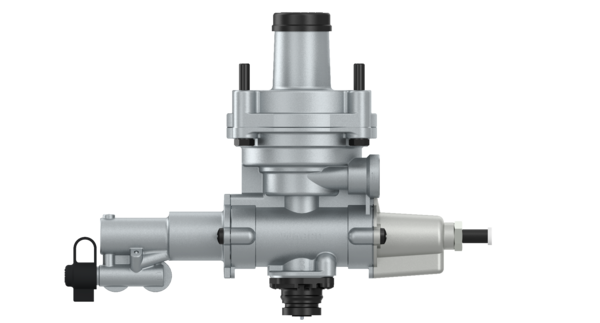

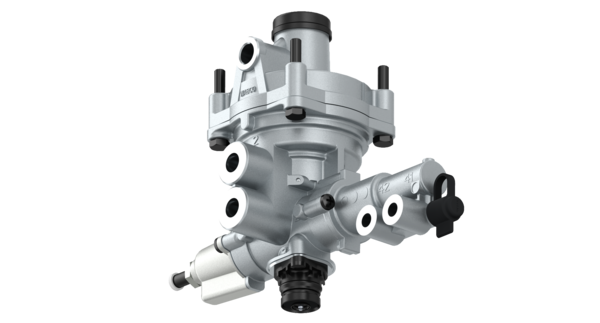

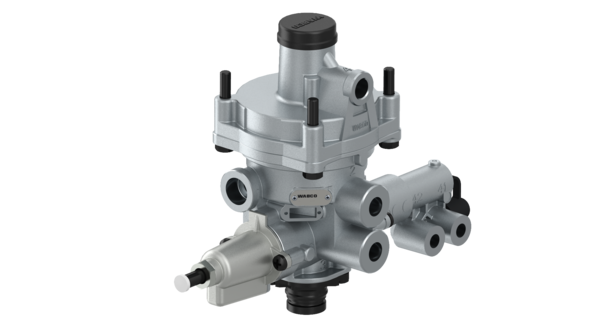

LSV Relay – pneu.
Part Number: 4757110130
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.4 bar |
| Calculated Volume (dm³) | 9.984 |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Relay Valve |
| GTIN | 04057875224761 |
| Size (mm x mm x mm) | 130 x 240 x 320 |
| UPC | 193133262084 |
| Weight (kg) | 1.96 |
| Weight (lb) | 4.3211 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ERF | 35504176178 |
| IVECO | 98449593 |
| MAN | 35504176178 |
| VOLVO | 1608356 |
