Description

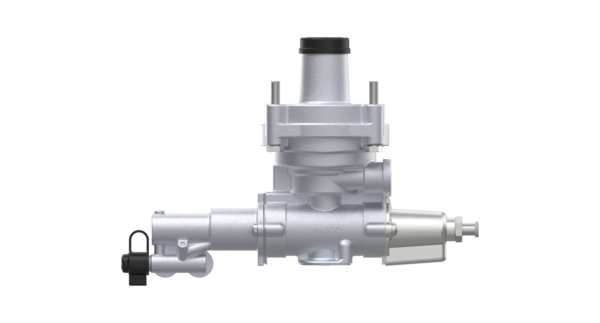

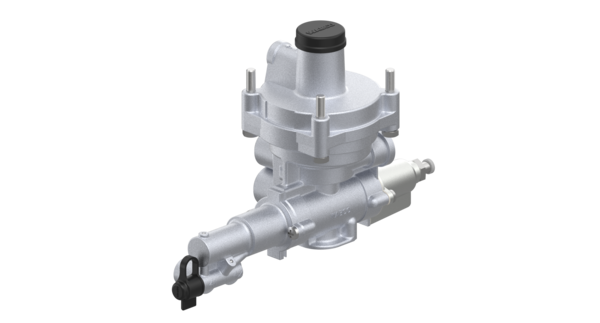

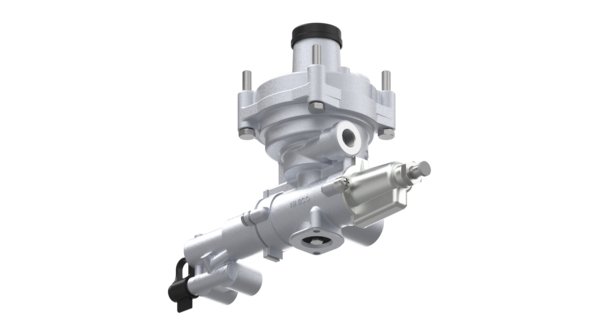

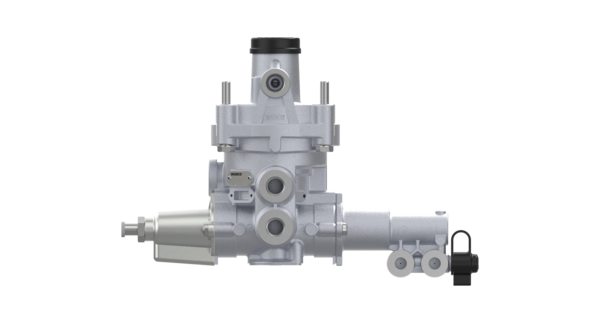

LSV Relay – pneu.
Part Number: 4757110040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 1.2 bar |
| Calculated Volume (dm³) | 7.502 |
| Comments | Like 4757110760 but with normal threads |
| Distance between bolts | 84×84 mm |
| Exhaust | Flap |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Relay Valve |
| GTIN | 04057875224655 |
| Size (mm x mm x mm) | 310 x 220 x 110 |
| UPC | 193133261872 |
| Weight (kg) | 1.9 |
| Weight (lb) | 4.1888 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0014317112 |
| MERCEDES-BENZ | 0014317112 |
| MERCEDES-BENZ | A0014317112 |
