Description

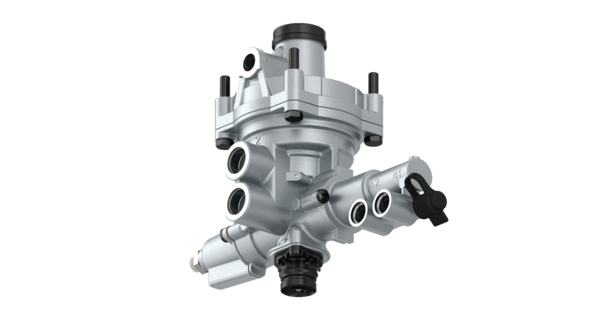

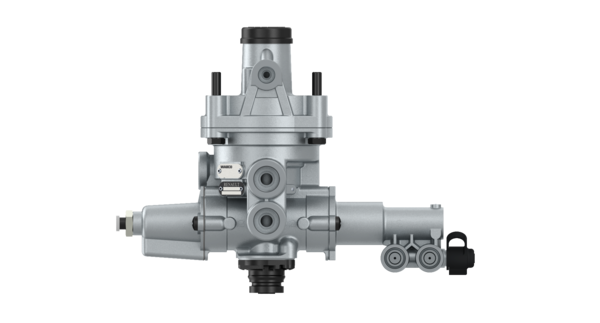

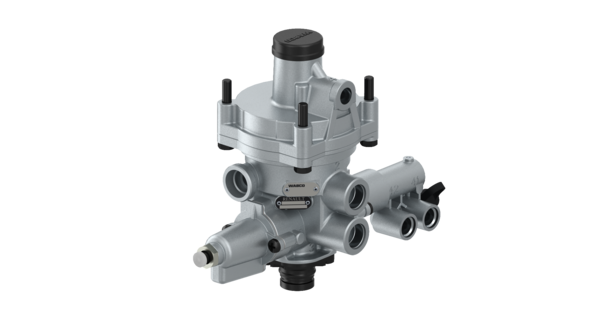

LSV Relay – pneu.
Part Number: 4757111420
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 1.4 bar |
| Calculated Volume (dm³) | 6.555 |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Range of adjustment | 0.5 to 7.7 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Relay Valve |
| GTIN | 04057875225614 |
| Size (mm x mm x mm) | 95 x 230 x 300 |
| UPC | 193133314561 |
| Weight (kg) | 1.94 |
| Weight (lb) | 4.277 |
OEM Cross References
| Brand | Reference No |
|---|---|
| RENAULT | 5010260729 |
